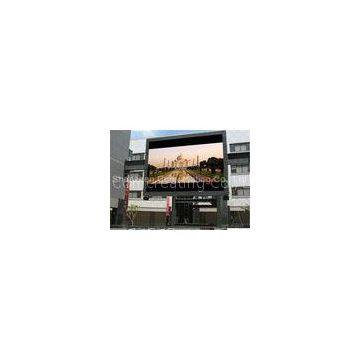

Dynamic Outdoor Full Color LED Display Asynchronous with Simple Frame 160mmX160mm

LED? Specification of Outdoor P10 LED Display

1

LED? Chip? Brand?

Red: ? Opto? /? Epistar
Green? & ? Yellow: ? Silan

2

Wave? Length? (nm)

R: ? 625nm; ?
G: ? 525nm; ?
B: ? 470nm

3

Pixel? Configuration

1R1G1B

Module? & ? Cabinet? Specification of Outdoor P10 LED Display

4

Physics? Distance? Between? Pixels

10? mm

5

Physics? Pixel? Density

10, 000? Pixel/m2

6

Module? Dimensions? (W? x? H)

160mmX160mm

7

Physics? Pixel? /? Module

16? x? ? 16? =? 256

8

Cabinet? Dimensions? (? W? x? H? xT)

960mm? X? 960mm? X? 190mm

9

Physics? Pixel? /? Cabinet

96? x? ? 96? =? 9216

10

Cabinet? Weight

51? kg

11

Cabinet? Material

Steel? Cabinet / Aluminum Cabinet

12

Cabinet? Frame?

Standard Frame
Simple Frame (without backdoor)
Lifting Frame (specially for rental use)

Screen? Specification of Outdor P10 LED Display

13

Brightness

>7000cd/m2

14

Viewing? Distance? (min, ? max)

>10m

15

Power? Consumption? /? Screen

MAX? 1000 w/m2 ; ?
Average? ? 300 w/m2 ;

16

Drive? Mode

1/4? scan

17

Refresh? Rate

300-3000?HZ adjustable

18

Frame? Rate

60HZ

19

Display? Flatness

0.5mm

20

Maintenance

Back? maintenance, ? replace? the? module

21

Led? Life? Span

100, 000? hours

22

Supply? Voltage

AC220V/50HZ, ± 10%;
AC110V/60HZ, ? ± 10%

23

Operating? Temperature

-20o C~+50o C

24

Operating? Humidity

10%-90%

25

Storage? Temperature

-40o C~+60o C

26

Viewing? Angle

Horizontal: 120°,?Vertical: ? 65°

27

Grey? Scale
