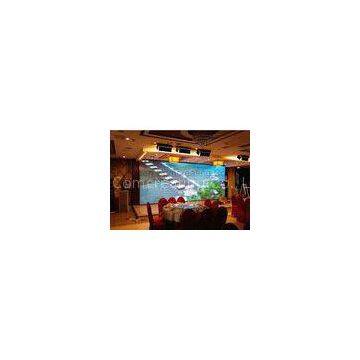

HD P3 Stage Background Indoor LED Video Walls High Resolution 2 years Warranty

LED Lamp Specification of P3 LED Video Wall

1

LED? Chip? Brand?

Red? ?Opto? /? Epistar
Green? & ? Yellow: ? Silan

2

Wave? Length? (nm)

R? ?625nm; ?
G? ?525nm; ?
B?? 470nm

3

Pixel? Configuration

SMD 3 in 1

Module?&?Cabinet? Specification of P3 LED Video Wall

4

Physics? Distance? Between? Pixels

3 ?mm

5

Physics? Pixel? Density

111,111?Pixel/m2

6

Module? Dimensions? (W? x? H)

192mm x 192mm

7

Physics? Pixel? /? Module

64?x 64?= 4096

8

Cabinet? Dimensions? (? W? x? H? xT)

960mm x?960mm?x?120mm

9

Physics? Pixel? /? Cabinet

320 x 320?= 102, 400

10

Cabinet? Weight

37kg

11

Cabinet? Material

Steel?Cabinet / Aluminum Cabinet

12

Cabinet? Frame?

Standard Frame
Simple Frame (without backdoor)
Lifting Frame (specially for rental use)

Screen?Specification of P3 LED Video Wall

13

Dimention

Customized Size

15

Viewing? Distance? (min, ? max)

>3m

16

Power? Consumption? /? Screen

MAX 800?w/m2?
Average 240?w/m2?

17

Drive? Mode

1/16?scan

18

Refresh? Rate

300-3000?HZ adjustable

19

Frame? Rate

60HZ

20

Display? Flatness

0.5mm

21

Maintenance

Back?maintenance,?replace?the?module

22

Led? Life? Span

100, 000?hours

23

Supply? Voltage

AC220V/50HZ, ± 10%;
AC110V/60HZ,?± 10%

24

Operating? Temperature

-50o C~+50o C

25

Operating? Humidity

10%-90%

26

Storage? Temperature

-50o C~+60o C

27

Viewing? Angle

Horizontal?120°,?Vertical 120°

28

Grey? Scale

Red,?green,?blue?each?16k

29

Display? Colors

4096?Billion

30

IP? Rating

IP20

31

Aging? Time? in? Factory

More?than?72?hours?constantly

Control System of P3 LED Video Wall

32

The? Software

LED?Studio?

33

System? Supported

Win? 98? /? 2000? /? 2003? /? XP / WIN7

34

Cont
