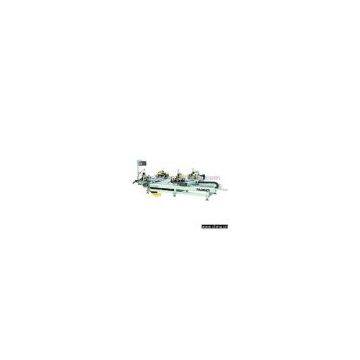

Sell Alu-Door-Window Four Corner Crimping Machine

Place of Origin	China

Model No.:LJJZ4-100 x 1800 x 3000
Product Origin:China
Brand Name:Parker
Price Terms:
Payment Terms:
Certification:
Description:Product Name: Alu-Door-Window Four Corner Crimping MachineModel Number: LJJZ4-100 x 1800 x 3000Place of Origin: ChinaParameters and specifications: 1) Power supply: 380V, 50Hz (three-phase, four-wire) 2) Hydraulic system pressure: 15MPa 3) Air pressure: 0.5-0.8MPa 4) Oil tank capacity: 60L 5) Air consumption: 0.45L/min 6) Corner-assemble: 0-50mm 7) Max. dimensions: 1,800 x 3,000mm 8) Min. dimensions of window: 450 x 450mm 9) Dimension of profile: 100mm 10) Overall dimensions: 5,000 x 3,000 x 1,150mm 11) Weight: 2,000kg Equipment features: 1) Used for corner punching combination of aluminum windows and doors 2) Four corners can be connected at one time, which greatly increases the production efficiency 3) Clamping device can automatically move forward / backward, making the operation convenient 4) Air-hydraulic system makes it convenient for system maintenance 5) Adjustable corner combining tool suitable for various profiles processing 6) Equipped with anti-error devices, to prevent from the error of position
