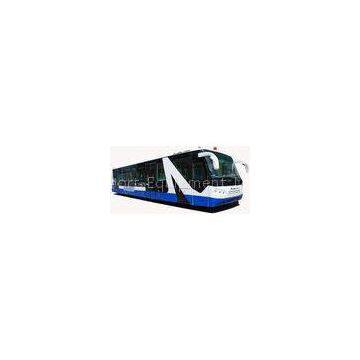

Aluminium Body Airport Limousine Bus 10600mm2700mm3170mm
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Customized 51 Passenger Vip Airport Shuttle Aero Bus 10600mm2700mm3170mm
-
77 Passenger International Airport Bus 13650mm2700mm3178mm
-
Ramp Bus K B4270 Large Capacity Customized High Quality Durable
-
Low Carbon Alloy Steel 51 Passenger Airport Apron Bus , 4 Strok Diesel Engine Bus
-
Comfortable Diesel Engine 13 Seater Airport Apron Bus With Aluminum Apron
-
Durable Airport Passenger Bus Xinfa Airport Equipment With Adjustable Seats
Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Certification:CE,FCC,MSDS
Low Floor Bus Compacting Body 2.7m Width Customized
Description:
Xinfa R&D center and production base is located in Da Chang Chao Bai He Industrial District, Langfang, Hebei Province. It is 200 units of yearly production capacity. XINFA is the core enterprise of GSE business unit of CIMC Airport Facilities, with the global R&D center for various GSE equipment such as Airport Apron Bus, Catering Truck, De-icer, Cargo Loader, Passenger Stair, Lavatory truck, Water Servicing Trucks, Aircraft Maintenance Platform, and Aircraft Fuel Bower, etc.
Specification:
|
No. |
Particulars |
Specs |
|---|
1.
Length × Width ×Height
10600mm×2700mm×3170mm
2.
Bus body
Low carbon alloy steel body with aluminum apron;
3.
Wheel base
5100mm
4.
Passenger accommodation capacity
Up to 51 passengers including fourteen (13) seats, in compliance with IATA specifications: four (4) Passengers per sqm
5.
Curb weight
11250kgs
6.
The varied height from passenger cabin floor sill to the ground level
270mm~340mm subject to embarkation and/or disembarkation of passengers
7.
Minimum turning radius
<9200mm
8.
Engine
CUMMINS ISDE180-30,EUROIII,132KW/2500rpm,ALLISON2100
|
Emergency system 1 |
The emergency switch for unlocking and opening passenger door is located above each door; The instruction is labeled beside emergency switch. The emergency switch for driver to open front passenger door is located on the dashboard; |
|
Emergency system 2 |
Set the brake system discharge device by following the instruction labeled; The emergency cover on wheel cover should be sealed to prevent from waterproof; |
|
Emergency system 3 |
An emergency device for opening door is equipped on each door in the passenger cabin, when the device is activated, there is a voice alarm in the cabin; |
