Home > Products > Airport Coaches > Aluminium Body 24 Seat Airport Shuttle Buses , 4 Stroke Diesel Engine Bus

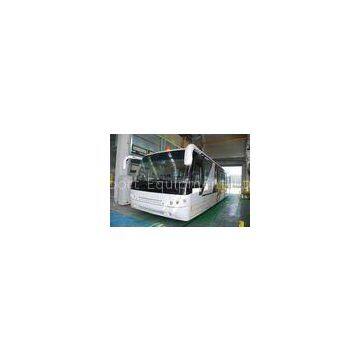

Aluminium Body 24 Seat Airport Shuttle Buses , 4 Stroke Diesel Engine Bus
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Ramp Bus with 24 Standard Seats and Customized Design High Quality
-
110 Passenger Aero Bus Xinfa Airport Equipment With Aluminum Apron
-
Luxury Radio + DVD + MP3 77 Passenger Airport Apron Bus With 7100mm Wheel Base
-
International 14 Seater Airport Passenger Bus With 190H52 Lead - Acid Battery
-
SANHUAN Steering 77 Passenger Aero Bus With Pneumatic Suspension
-
Adjustable Seat Airport Transfer Bus , Front Axle MERCEDES BENZ 733.W14 Left Hand Drive Bus
Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Certification:CE,FCC,MSDS
Airport Coaches with 110 Passengers and 24 Seats Customized Design
Quick Detail:
1. ? ?Passenger doors on both sides
2.??? More mobility and flexibility on the apron
3.??? Competitive Price
4.??? Aluminium body
5.??? More than 18 years vehicle life time
Specification:
|
No. |
Particulars |
Specs |
|---|
1.
Length × Width ×Height
13895mm(±20mm)×3000mm×3178mm
2.
Bus body
Low carbon alloy steel body with aluminum apron;
3.
Wheel base
7100mm
4.
Passenger accommodation capacity
Up to 110 passengers including fourteen (14) seats, in compliance with IATA specifications: four (4) Passengers per sqm
5.
Curb weight
12840kgs
6.
The varied height from passenger cabin floor sill to the ground level
270mm~340mm subject to embarkation and/or disembarkation of passengers
7.
Minimum turning radius
≯13500mm
8.
Engine
4-strok, diesel engine
|
9. |
Pneumatic suspension |
GOODYEAR, 270~340mm, 6 nr. pneumatic suspension |
|
10. |
Seats |
Six seats in front, eight seats on Rear Wheel location; Adjustable seats with seat belts for driver and co-driver |
|
11. |
Air conditioning in driver cabin |
Model:? THERMOKING S30, Cooling capacity: 8568Kcal/hour |
|
12. |
Air conditioning in passenger compartment |
Model: THEMOKING KRS1139A Compressor: X430 Capacity: 36980Kcal/hour. Mean oil consumption of engine: ≤2L/h |
Driver cabin door
Numbers: 02 nr. Articulated and outward opening single-leaf door, and each door uses the rod limit and lock mechanism; Water drainage gutter is installed in the upper part of each door.Emergency system
The emergency switch for unlocking and opening passenger door is located above each door; The instruction is labeled beside emergency switch.3. The emergency switch for driver to open front passenger door is located on the dashboard;
