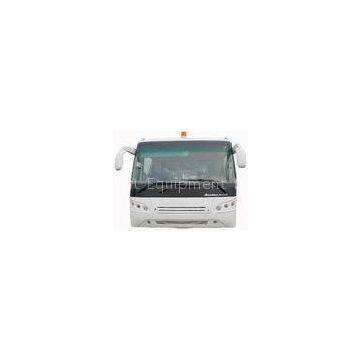

77 Passenger Airport Limousine Bus With 4 Pneumatic Double Opening Doors
USD $4 - $5
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
International Wide Body Low Floor Buses With SANHUAN Steering
-
102 Passenger Airport Shuttle Bus 14 Seater Bus With 190H52 Lead - Acid Battery
-
Airport Coaches Xinfa Airport Equipment With THERMOKING S30 Air Conditioning
-
Ramp Bus 13m High Capacity Big Passenger Standing Area
-
Anti - Slip Low Floor Tarmac Coach Apron Bus With IATA Standard
-
110 Passenger Airport Limousine Bus , 4 Stroke Diesel Engine Airport Coaches
Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Certification:CE,FCC,MSDS
Airport Limousine Bus 3000m Height High Quality Durable and Capacity?
Specification:
|
No. |
Particulars |
Specs |
|---|
1.
Length × Width ×Height
13650mm×2700mm×3178mm
2.
Bus body
Low carbon alloy steel body with aluminum apron;
3.
Wheel base
6670mm
4.
Passenger accommodation capacity
Up to 77 passengers including thirteen (13) seats, in compliance with IATA specifications: four (4) Passengers per sqm
5.
Curb weight
12250kgs
6.
The varied height from passenger cabin floor sill to the ground level
270mm~340mm subject to embarkation and/or disembarkation of passengers
7.
Minimum turning radius
<13500mm
8.
Engine
4-strok, diesel engine
|
Fuel consumption |
≯215g/kwh Less than 30Liter per 100 km |
|
Dry weight |
520kgs |
|
Fire unit |
Electromagnetic mechanism |
|
Generator |
28Volt |
|
Starter |
6 Kw, 24 Volt |
|
Battery (2 pcs):???????????????? 190H52 Lead-acid battery |
Passenger door system
Four (4) pneumatic double opening doors; Four (4) doors can be separately operated via two (2) main control switches and four (4) sub-control switches, and the main switches and sub-control switches are deployed on the dashboard; Driven by Air cylinders and valves; An emergency safety hammer is installed at the right and left front door; The location of emergency switch for each door m should be accessible by following a adjacent instruction; When doors are open, the shift function is forbidden. Pneumatic pumps used to open the doors is installed inside the air duct;OUR SERVICE:
1. Prompt response to clients\' inquiry in 24 hours
2. Five years spare parts shipped with the bus
3. Speedy parts dispatch in cooperation with DHL
4. Airport site training in English?
