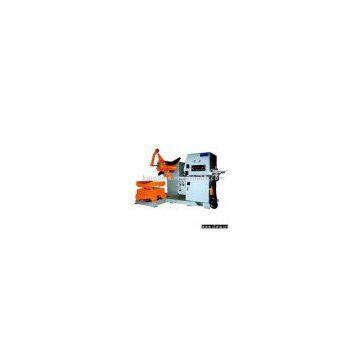

Sell 3-In-1 NC Servo Feeder Straightener and Uncoiler

Place of Origin	China

Model No.:TLF1-500
Product Origin:China
Brand Name:King Jime
Price Terms:FOB Shenzhen
Payment Terms:L/C
Certification:
Description:Specifications: 1) Model: TLF1-400 / 500 / 600 / 700 / 800 2) Material width (mm): 400 / 500 / 600 / 700 / 800 3) Material thickness (mm): 0.3 - 3.2 4) Coil load (kg): 2,000 / 3,000 5) Coil. I. dia. (mm): 508 6) Coil. O. dia. (mm): 1,200 7) Speed (m/min): 16 8) Servo motor (kW): AC 3.5 / AC 5 9) Coil expansion: hydraulic 10) Uncoil sensor: photo sensor 11) Uncoil motor (kW): AC 0.75 / AC 1.5 12) Coil car: optional 13) Air hold down arm: stander 14) 3 in 1 machine have device to bring the strip from decoiler into straightener automatically without man power Feeding feature by PLC program from Mitsubishi: 1) NC Servo feeding, operating with computerize numerical control by PLC program from Mitsubishi made in Japan. The electrical parts from YASKAWA made in Japan including Servo motor, driver, encoder, and interface screen 2) High precision feeding: to meet the coming of hi-tech industry, controlled by computer closed circuit feedback system to keep precision degree within ±0.03mm 3) Feeding function: input 20 sets of different feeding length, each group provides 999 times for punching or cutting to satisfy processing of special products 4) High efficiency release device, match with adjustment of signal from the cutter or press machine through cable wire 5) Setting of feeding length: directly input feeding length on the control plate, and then it can reach needed distance, feed length max. 9999.99mm, max. speed 100m/min Straightening features: 1) Feeding and straightening max 0.1-8.0mm thick, 100-1,600mm wide 2) Straightening thickness adjustment by the advanced worm gear screw jack with reference indicator 3) Coil material entry support assembly can bring the material into pinch rollers automatically to save man power and increase safety 4) Threading table device provide you a simple and efficiency operation 5) New age design humanity easy to set up curve or down curve feeding exit direction Outer packing: Wooden cases
