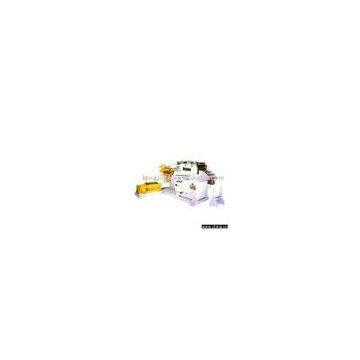

Sell 2-in-1 Servo Straightening and Uncoiling Machine

Place of Origin	China

Model No.:BAL-500B
Product Origin:China
Brand Name:King Jime
Price Terms:FOB Shenzhen
Payment Terms:L/C
Certification:
Description:Specifications: 1) Models: BAL-400B / 500B / 600B / 700B / 800B 2) Material width (mm): 400 / 500 / 600 / 700 / 800 3) Material thickness (mm): 0.3 - 3.2 4) Coil load (kg): 2,000 / 3,000 5) Coil. I. dia. (mm): 480 - 520 6) Coil. O. dia (mm): 1,200 / 1,500 7) Speed (m/min): 15 8) Straighten roller: a) TUL-400 / 500: 11 bottom rolls drive b) TUL600 - 800: 11 top and bottom rolls drive 9) Motor (HP): 3 / 5 / 7.5 (380V) 10) Expansion method: hydraulic 11) Uncoil method: master 12) Uncoil sensor: photo sensor 13) Uncoil power (HP): 2/3 14) Coil car: option 15) Air hold down arm: stander Feature: 1) 2 in 1 uncoiler and straightener save space and increase productivity 2) Straightener can be opened for cleaning of rolls 3) Straightener and thickness adjustment by 4 worm gear micro-adjuster with reading 0.1mm advance reference indicator 4) All rolls are made of bearing steel (SUJ2), and have all been quenched hard-chrome plated and ground with min. HRC 60 degrees 5) High rigid mechanical design sturdy construction, and high power output to secure proper straightening and feeding during the speed increasing efficiency 6) Coil car (optional): more efficiency and productive consideration, more convenient, power-saving and automatic operation during the coil material handling 7) 2-in-1 machines have device to bring the strip from decoiler into straightener automatically without man power Outer packing: Wooden cases
