Home > Products > AAC Mixer > Autoclaved Aerated Concrete production line AAC Mixer 50m Agitator for waste slurry storage
Autoclaved Aerated Concrete production line AAC Mixer 50m Agitator for waste slurry storage
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
AAC Block Production Line AAC Ball Mill to grinding sand and lime , ISO9001 & GMC Certification
-
Pre curing room Frictional wheel composed of reducer / wheel assembly / air spring
-
Steel / welding plate Side plate for loading cakes , L*W*H 6195*690*262mm
-
Autoclaved Aerated Concreteplant AAC autoclave equipment also used in chemical / textile industry
-
Autoclaved Aerated Concreteplant AAC Boiler , AAC equipment Steam boiler
-
Fully automatic ethernet control system for AAC block production line
Product Details
| Brand Name | SANKON | Place of Origin | China | |
| Model Number | 50DJ |
Product Description
Certification:GMC,ISO

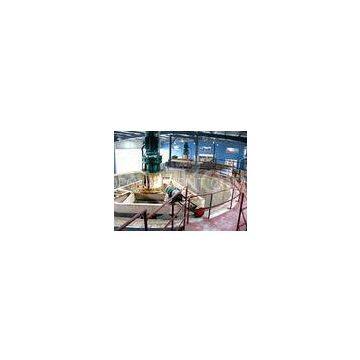

50m3 Agitator for slurry and waste slurry storage
a) ?Uses
50 CBM slurry tank or waste slurry tank is a container used for storage the slurry or waste slurry during manufacturing process.
b) ?Technical parameter
max dimensions length,width:? 4000mm????????? height:6033mm? volume:50m3(?3600×5000) weight:9065kg mixing technical parameter helical gear box:CRM147-84.5-Y-18.5-V1, power18.5Kw, rotating speed 1470rpm, mixing speed17.4rpm. pneumatic butterfly valve:D671X-10-150c)? Structure
Composed by tank, gear box, mixer and butterfly valve
1, Tank is a cylinder, made by concrete.
2, Gear box is helical gear box.
3, The mixer is welded by steel pipe, steel plate, mixing shaft.
4, Slurry discharging is controlled by pneumatic butterfly valve.
d)? Working principle
The storage tank used for store the waste slurry after mixing, it stops the waste slurry by solidification. The waste slurry shall mix in the tank. The mixing power is helical gear box. The gear box rotate clockwise, mixing shaft and mixer rotate accordingly, the waste slurry get sufficient mixing, eliminate the solidification situation, the discharge of the waste slurry is controlled by the pneumatic butterfly valve.
e)? Quick-wear parts
|
no. |
name |
type |
remark |
|
1 |
gear box |
CRM147-84.5-Y-18.5-V1 |
|
