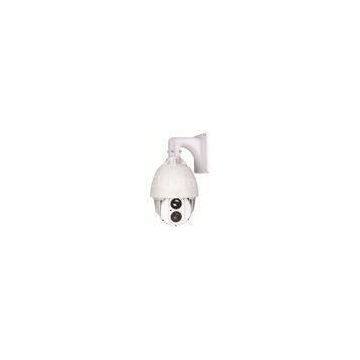

18X 720P HD Laser IR Dome Camera High Speed , Progressive Scan

1.720P IP Laser IR High Speed Dome Camera
2.300M IR laser network high speed dome
3.1.3 megapixels,adopt 1/3\" progressive scan

720P IP Laser IR High Speed Dome Camera

Performace Specification:

300M IR laser network high speed dome is a kind of high-end intelligent monitoring product integrated with light, machine, electricity and image 0.5°~40° continuous lighting angle,laser light source can automatically adjust according to actual distance; 1.3 megapixels,adopt 1/3\" progressive scan CCD sensor,18X optical zoom. Optimized H.264 Main Profile compression algorithm,high compression ratio, high definition, support dual stream; Adopt SOC Hi3512 processor,high integration; Support multi-IP protocol, such as TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP; Support bothway voice talkback and monitoring; Heater and radiator function, make the product apply to wider work environment and running more stable. Unusual automatic recovery and auto reconnect once network interrupted; Support setup and call of preset, tour and track; Built-in Web Server, can realize remote monitor, control, set and other operations through IE browser; Support phone and mobile network monitoring; Support ONVIFprotocol Pass IP66,CE,FCC,RoHs and other related validation; 1 channel input alarm and 1 channel output alarm, support hard reset , image and video storage;

Technical Specifications:

Hardware	?
cpu	ARM9,32 bit RISC
SoC	Hi3512
RAM	128MB
ROM	16MB
Network	LAN	Realtek 10/100M BASE-TX
Camera	?
Sensor	1/3\" progressive scan CCD
Effctive pixels	1280(H)×720(V)
Total pixels	1.3 megapixels
Lens	18X optical zoom f=4.7mm(W) ~ 84.6mm(T)
Iris	F1.6 ~F2.8
Horizontal angle	55.2°(W)~3.2°(T)
Min. illumination	Color: 0.5 Lux B/W:0.02 Lux
SNR	≥50db(AGC OFF,Weight On)
Electronic shutter	1/50—1/10000sec
Interface	?
Voice talkback output	1 channel,MIC port(optional)
Audio output	1channel,linear output(optional)
Analog video output	Support
Input alarm	1 channel
Output alarm	1 channel
Hard reset	Support
Memory interface	Support image and video storage,SD2.0,
Compression	?
Video compression	H.264 Main Profile@Level 3.0 / MJPEG selectable
Max. image resolution	Preferred stream:1280x960,1280x720 (selectable)
Alternated stream:640x480
Video compressed code	32Kbps~16Mbps setable
OSD title	Support channel name, date and video information overlay; OSD position adjustable
Audio compression	G.726/G.711A/G.711U
Image	?
Mask setting	Max 4 Zones selectable
Dual stream	Support
