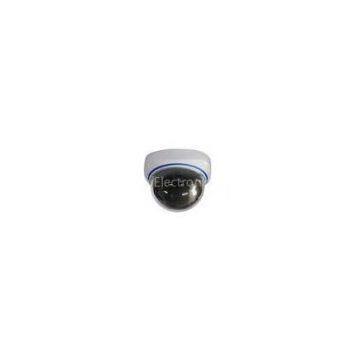

B.L.C Line Scan CCD Dome Camera Indoor Weatherproof 12VDC With 14 Leds

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Yuntai		Place of Origin	China
Model Number	AT408-3S2R14

Delivery Time:7 Day(s)
Certification:CE , RoHS , OEM

B.L.C Line Scan CCD Dome Camera Indoor Weatherproof 12VDC With 14 Leds Detail:

1.420 TVL /540 TVL
2.14 High Intensity LEDS (26Leds optional)
3.3.6mm MTV lens(6mm optional)
4.3 Axis Dome camera

?

Feature:

Outdoor / Indoor Vandal proof IR COLOR CCD CAMERA WITH 14 LEDS

1/3 SONY Super HAD CCD

High Resolution 420 TVL 0.5LUX

14 High Intensity LEDS (26Leds optional)

3.6mm MTV lens(6mm optional)

DC12V 300mA

Weatherproof

Specificantion:

Image device	1/3 SONY Super Had CCD
Pixels	PAL	500(H)x582(V)
NTSC	510(H)x492(V)
Lens	3.6mm MTV
Scanning system	PAL625 Lines,50Field/S ; NTSC525 Lines,60Field/S
Sync system	Inter line Synchronization
Horizontal resolution	420TV line
Video output	1Vp-p75 ohms, Negative
S/N Ratio	More than 48dB (AGC off)
Gamma characteristic	0.45
White balance	Auto White Balance(AWB)
B.L.C	Back Light Compensation (Auto)
Minimum illumination	0.5LUX/0LUX(LEDS ON)
Electronics shutter	PAL: 1/50~1/100,000 sec
Power input	DC12V 300mA
Operation temperature	-10°C~+50°C RH95%Max
Storage temperature	-20°C~+60°C RH95%Max
