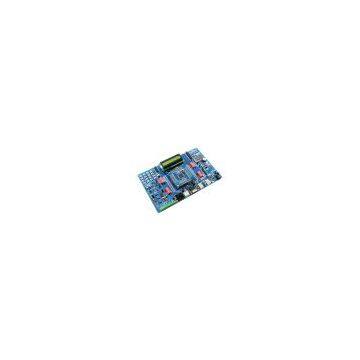

ATmega1280/ATmega2560/ATXmega Development Board

ATmega1280/ATmega2560/ATXmega Development Board

Significant Features
Intergrated common resource: LED, KEY, 7-segment LED display,LCD,RS232,CAN,DAC,PS/2 interface.
Intergrated AVRISP MKII programmer.
Intergrated signal conditioning circuit, input 0~10V, rail-to-rail signal conditioning.
The development board will be separate from the base board and core board.
Core board can be easily replaced by other chip core board, such as ATMEGA2560, ATMEGA640, ATXMEGA128A1.

On-board resource list
1. 5V power supply interface, input 7~9V with inside positive
2. On-board AVRISP MKII USB interface
3. On-board external ISP, JTAG Programming interface
4. Atmega1280 chip, rich on-chip resource
5. USB1.1 communication interface
6. RS232 serial communication interface
7. 74HC4060 Variable Frequence
8. 4X4 Keyboard
9. 4in1 7-segment LED display drived by HC595
10. 8 separate LED
11. 1 active buzzer, also can be accessed by passive buzzer
12. Calendar clock DS1337
13. 1 IIC bus EEPROM AT24C01
14. Analog Temperature Sensors TC1047A
15. SPI bus digital Temperature Sensor TC72
16. Hardware debounce circuitry
17. CAN bus circuit
18. Digital-analog conversion circuit constituted by the MCP4922
19. PS / 2 (Keyboard)connector
20. Crystal oscillator and reset circuit
21. Optional active crystal oscillator circuit
22. AD voltage adjustment potentiometer
23. Potentiometer voltage reference and voltage under test adjust
24. 4 8-bit DIP switch
25. 100Pin MCU pins marking all the external terminal
26. 12864 LCD Interface
27. 1602 LCD Interface
28. Standard nylon terminal block KF396
29. Transparent non-slip silicone pad

System requirements
To conduct system development, the minimum requirments on your computer
-At least 80M of space for the installation of AVR studio and ICCAVR
-Windows 98/2000/ME/XP or higher
- Baud rate to 115200 of the RS232 communication interface (serial port), if not, you can use the USB-serial cable
-USB interface used for communication, or 7~ 9 V DC power supply, 500mA, with positive inside

Package List:
-EasyAVR development board (on-board AVRISP MKII programmer)
-9V DC power supply
-USB communication cable
-Development board manual
-CD-ROM with schematic, development software, example program inside
