Samsung S3C2440 ARM9 Development Board 3.5

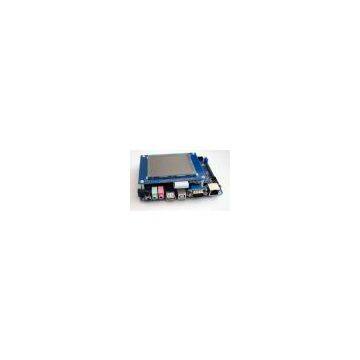

Samsung S3C2440 ARM9 Development Board 3.5" TFT LCD Touch Screen

Board Features
CPU
-Samsung S3C2440A 400MHz, Max freq. 533Mhz

SDRAM
-64MB SDRAM
-32bits Data Bus width
100MHz Clock

Flash
-256MB Nand Flash
-2MB Nor Flash, BIOS installed

LCD
-4 wire resistive touch screen interface
-Up to 4096 color STN, 3.5 inches to12.1 inches, up to 1024x768 pixels
-Up to 64K color TFT, 3.5 inches to 12.1 inches, up to1024x768 pixels
-In box 256K color 320x240/3.5 inches TFT LCD screen, with touch panel

Interface and Resource
1 x 10/100M Ethernet RJ-45(DM9000)
3 x Serial Ports(1 RS232 with CTS and RTS)
1 x USB Host
1 x USB Slave Type B
1 x SD Card Interface
1 x Stereo audio out, 1 Micro In
1 x 10-Pin JTAG
4 x USER LEDs
4 x USER buttons
1 x PWM Beeper
1 x POT can be used for A/D converter adjust
1 x AT24C02 for I2C test
1 x 20-Pin Camera Interface
1 x Battery for RTC
1 x Power In(5V), with switch and lamp

Oscillator Freq.
-12MHz

RTC
-Internal

Expand Interface
1 x 40-Pin 2.0mm GPIO Interface
1 x 40-Pin 2.0mm System Bus

Dimension
-128 x 105(mm)

OS Support
-Linux 2.6.32
-Windows CE.Net 5.0/6.0

Content List:
1 x S3C2440 core board (Link to description >>>>Samsung S3C2440 Core Board <<<<)
1 x S3C2440 base board
1 x Serial cable
1 x Net cable
1 x USB cable
1 x 5V power adapter
1 x Parallel port wiggler JTAG emulator(for H-JTAG)
1 x DVD-ROM with product reference
1 x TFT LCD: 3.5", 320x240, with touch panel

Material list on DVD-ROM
-H-JTAG Debugger
-Windows Flash Programmer SJF2440
-Linux Nand Flash Programmer Jflash-2440(source code included)
-Serial tool CRT, dnw
-Bitmap to C Language transfer tool
-USB Driver(WindowXP/2000)
-vivi source code(linux bootloader)
-LED test program(ADS1.20 project)
-2440test program(ADS1.20 project), include :
 key test, RTC test, ADC test, IIS Audio play(wav), IIS Audio record,
 touch screen test, I2C test, Samsung 3.5"LCD, 640x480 TFT test
-WindowsCE 5.0/6.0 BSP and sample project files.
-Pre-compiled WinCE 5.0/6.0 image for evaluation
-Linux tool and kernel source code
     - arm-linux-gcc-4.3.2 with EABI
     - yaffs2 file system image maker -mkyaffs2image
     - linux-2.6.29 for S3C2440 kernel source code(include DM9000, LCD driver, Audio,
       Touch screen, YAFFS Source code, SD Card, RTC, Expand serial driver,
       USB Camera,USB Mouse and Keyboard, U-Disk)
-Pre-compiled Linux image for evaluation
-Qtopia 2.2.0 source code, web browser source code
-Schematics(Protel99SE/PDF)
-User Manual(English)
