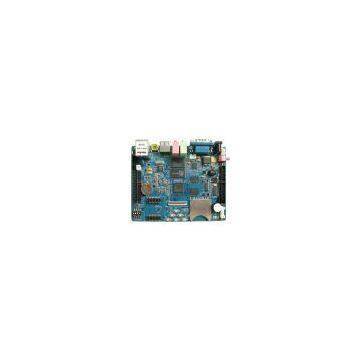

S3C6410 ARM11 Development Board 7

S3C6410 ARM11 Development Board 7" TFT LCD TQ6410

CPU:
-Samsung S3C6410XH-66,ARM1176JZF-S Frequency:667MHz

DDR RAM:
-128M (Samsung K4X51163PC)

NAND Flash:
-256M (Samsung K9F2G08)

NOR FLASH:
2M (EN29LV160AB)

Interface and Resource:

1x 100MbpsEthernet RJ-45 DM9000AE
1x AC97(WM9714)Audio Interface
-1x Output,1x MIC Input,1x LINE-IN Input,3Pin 2.0 Interface
1x EEPROM (I2C),(AT88SC016)-Optional
1x USB HOST(USB A/F)
1x USB 2.0 HS OTG(mini-USB AB),USB B/F-Optional
2x SD Interface
1x SDIO WIFI(IEEE802.11b/g)
4x Serial Ports(115200bps)
-2x 5-wire serial
-2x 3-wire serial
1x LCD 4-wire touch screen signal
-FPC0.5-SMT-40P
-3.5-10.4 TFT Inches
-3.5-10.4 STN Inches
1x Camera Interface,10x2  2.0 Pin connector
1x TV OUT Interface,2 Pin 2.0 Pitch Position Interface
2x 2*20  2.0 Double Interface
1x JTAG Interface (5x2 2.0 Interface)
1x Buzzer
1x Red LED power Indicator
4x Green LED Indicator
6x Button (Up-Down-Left-Right-OK to Back)
1x Button Battery (supply RTC powerfor for CPU)
1x Reset button (811T)
1x Power Switch
1x 12V Power Interface (2.1 interface)
1x 12V or 5V power supply input (3Pin 2.0)
Board size: 121.5 * 100 * 17

OS Support:
-WinCE6.0
-Linux2.6.28.8
-Android2.0

Content List:
1x S3C6410 development board
1x 4.3-inch or 7 inch screen LCD
1x 12V 2A power supply
1x serial cable
1x USB download cable
1x cable
1x CD-ROM
