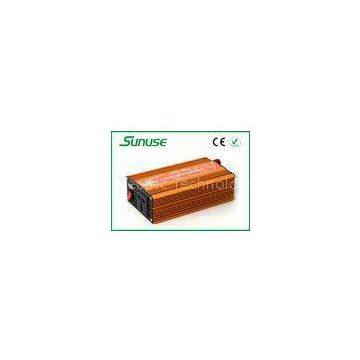

High Frequency 1000 w 12vdc To 110vac Inverter Boat / Truck Power Inverters

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Sunuse		Place of Origin	China
Model Number	SIM1000

Product Description

Delivery Time:3-7 working days
Certification:CE,ROHS

1000W Modified Sine Wave Inverter 2000W Peak Power 12V DC to 110V AC

Quick Detail:

1, With USB 2000mA, 5V output
2, Full Protection
3, Smart, light, easy for carry?
4, Peak power 2000w

Specifications:

Item:	1000W 12V	1000W 24V	1000W 48V
Input?DC Voltage Range:	11-16V DC	22-31V DC	44-62V DC
Under-voltage Protective:	10.0±0.3V DC	20.0±0.8V DC	40.0±1.5V DC
Under-voltage Alarm:	10.5±0.3V DC	21.0±0.8V DC	42.0±1.5V DC
Over Voltage Protective:	16.0±0.3V DC	31.0±0.8V DC	62.0±1.5V DC
Over Voltage Recovery:	15.0±0.3V DC	29.0±0.8V DC	59.0±1.5V DC
Max Power:	1000W
Peak Power:	2000W
Package:	White box package
USB:	2000mA, 5V
Reverse Protecion:	Blown fuses
Over Load Protection Power:	110%-120%
Quiescent Current:	≤0.1A~0.6A
Max. Efficiency:	≥92%
Total Harmonic Distortion:	≤3% Linear load(modified sine wave)
Status Indicator Lamp:	Work: Green LED Failure: Red LED and alarm LED Display: Voltage, Current, Power(optional)
Usage:	for?a car, truck, boat, home or standard battery; or solar system, etc.
Working condition:	Operating Temperature: -10~40°C Operating Humidity: 10--90%(non-condensate)

modified sine wave inverters series (modified square wave or step wave) approximate a pure sine waveform. Modified sine wave inverters are designed to satisfy the efficiency requirements of the photovoltaic system while being less expensive than pure sine waveform inverters. These inverters are capable of operating a wide variety of loads; electronic and household items including but not limited to TV, VCR, and satellite receiver, computers, and printers.
?

Features

High frequency design Max efficiency up to 90% Full protection: Input protection:?Reverse polarity / Over voltage / Low battery alarm and shutdown Output protection: Short circuit / Overload / Over temperature Ideal for powering inductive loads such as motor, and other sensitive loads, medical equipment and solar systems.?
