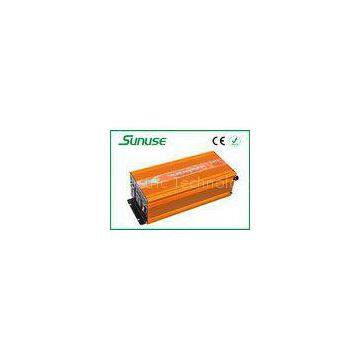

50Hz / 60Hz 3000 Watt Pure Sine Wave Power Inverter With Overload / Short Circuit

FOB Price

Negotiable / Box

1 Box(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Sunuse		Place of Origin	China
Model Number	SIP3000

Delivery Time:3-7 working days
Certification:CE,ROHS

Cool?Surface?Technology?3000?Watt?Pure?Sine?Wave?Inverters?Peak?Power?6000watt?With?Sunuse?Brand

Quick Detail:

1, Isolated input and output
2, Load controlled cooling fan
3, Advanced microprocessor design
4, Protections: overload / short circuit,

Specifications:

Ⅰ	Battery?Input?Properties	Note
1	Nominal?Input?Voltage	13.2VDC
2	Input?Voltage?Range	?11-16VDC
3	Low?Voltage?Cut?Off	10.0±0.3VDC
4	Low?Voltage?Restart	12.0±0.3VDC
5	Low?Voltage?Alarm	10.5±0.3VDC
6	High?Voltage?Cut?Off	16.0±0.3VDC
7	High?Voltage?Restart	15.0±0.3VDC
8	No?Load?Current	≤0.4A
9	Input?Fuse	30A×4
10	Input?Reverse?Protection	By?fuse
AC?Output?Properties
1	AC?Voltage?Range	120±5VAC
2	AC?Output?Frequency	60±0.5Hz
3	Continuous?Output?Power	3000W
4	Overload?Protection	1010—1150W
5	Peak?Output?Power	6000W
6	Output?Voltage?Waveform	Pure?Sine?Wave
7	Total?Harmonic?Distortion	≤3%	Linear?Load
8	Efficiency	≥92%
9	Output?Short?Circuit?Protection	Yes
10	High?Temperature?Protection	≤65℃	Restart
Ⅱ	Other?Properties
1	Indicate	Operating?:Green?LED
Fault?:Red?LED?And?Alarm
2	Operating??Temperature?Range	-10--40℃
3	Storage?Temperature?Range	-20--55℃
4	Operating?Relative?Humidity	10---90%
5	Storage?Relative?Humidity	5---95%
