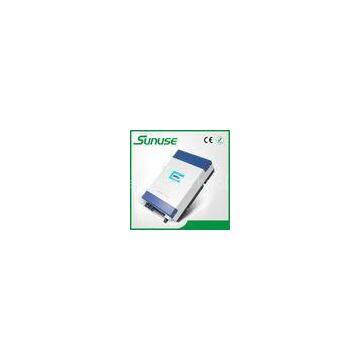

High Efficiency 230V pure sine wave power inverter 5kw With Mppt Controller

FOB Price

Negotiable / Kilogram

1 Kilogram(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Sunuse		Place of Origin	China
Model Number	SSI-5000TL

Delivery Time:3-7 working days for sample, 7-30 working days for bulk
Certification:CE, ROHS, TUV

High Efficiency On Grid Solar Inverter 5kw With Mppt Controller Strong Stability

Quick Detail:

1, Pure sine wave, high efficiency
2, Single-phase, transformerless
3, IP65, 1 MPPT channel

4. 5 years’ warranty

Specifications:

Model (SSI-)	1100TL	1500TL	2000TL	2500TL	3000TL	3600TL	5000TL	6000TL
Max. DC input power (W)	1170	1720	2300	2620	3550	3750	5200	6400
Max. DC voltage (Vdc)	450	500	550
Start voltage (Vdc)	100	150
MPPT operating range (Vdc)	80~450	100~450	100~500
Number of parallel inputs	1	2	3
Number of MPPT trackers	1
Max. input current (A)	11.7	10	13	14.5	20	21	22.5	27.5
Nominal output power (W)	1100	1500	2000	2490/2500	3000	3600	5000	6000
Max. output power (W)	1100	1650	2000	2490/2500	3400	3600	5000	6000
Nominal output current (A)	5.7	6.5	8.7	10.8	13	15.7	21.7	26
Max. output current (A)	6.5	7.9	10.5	12.5	15.7	16	24	31.2
Nominal AC output voltage (Vac)	230
AC Output voltage range (Vac)*	185~265
AC Grid frequency range (Hz)*	50±5
Power factor (cosφ)	>0.99
THDI	<3%(at nominal output power)
Max. efficiency	96.40%	96.50%	97.00%	97.00%	97.20%	97.30%	97.60%	97.60%
Euro. efficiency	96.40%	95.50%	96.20%	96.10%	96.40%	96.50%	97.00%	97.10%
MPPT efficiency	99.60%
Operating temperature (°C)	—25~+60
Noise (typical) [dB (A)]	≤20
Consumptio
