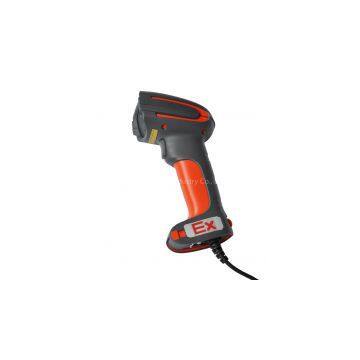

explosion proof handheld barcode reader/ scanner

Introduction

XY100 handheld explosion-proof barcode scanneris designed for various scanning work in extreme harsh and hazardousenvironment, adopted with advanced imaging technology and decodingarchitecture, this barcode scanner provides users prominent barcode readingexperiences. The best part is we specified the scanner outline to fit withexplosion-proof requirement and also refine the reliability standard, make iteasy to read most all kinds of barcodes. With excellent light source, clearlaser aiming and prolonged depth of field, it surely gained the most effectiveperformance. It is intrinsic safety designed for hazardous locations in Zone 1,Zone 2, Zone 21 and Zone 22.

Features

• Availableto read barcodes under direct sunlight

• Durable enclosure designed forharsh and hazardous working environment, no damages after several times fallfrom 2m high

• Accurate and strong barcodereading ability make it work well under extreme environment

• Capable of reading most standard1D and 2D barcodes

• Remote scanning, can read barcodes(1D or 2D) from 1250px away

• Strong anti-jamming capability

• Via LED lighting, buzzing andvibrates to indicate a successful barcode reading

TechnicalSpecification

Electricparameterwarning! There will be damages caused by overranged voltage or inversed wiring of positive and negative poles.

• Power voltage: 220VAC/24VDC ±10%

• Ingress protection: IP65

• Explosion-proof class: ExibIIBT6 Gb/ ExibIIIBT135°CDb

• Scanning method: 2Dimaging scan (830*640 pixels)

• Reading distance: Max749mm away (20mil Code 39)

• Readable type: Standard1D and 2D barcode

• Scanning speed: 500times/S

• Connector: RS232, Max 9.8M long

• Operating temperature: Normal: -30~50 °C

• Storage temperature: Normal: -40~70°C

• Environment humidity: 0~95% RH(non condensing)


Max 749mm away (20mil Code 39)
