explosion proof oil tank monitor

Introduction

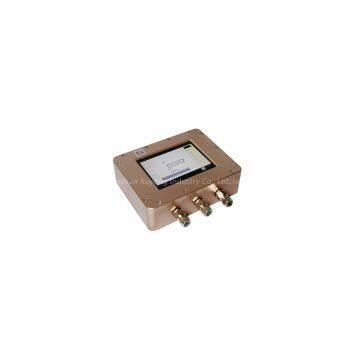

XY800series explosion-proof oil tank monitor is a monitor that display tank leveldata through the touch operating screen. It can be connected with liquid levelmeters, thermometers, pressure transmitters and alarm equipment directly anddisplay the instrument parameters; it also can communicate with the managementsystem of the oil tank, and display all kinds of instrument parameters andalarm by using remote projection. With all these performance, this type ofmonitor meets monitoring display requirement for all kinds of storage tanks,and make it easy for operators to acquire information of tank level,temperature, pressure data and etc., which make the monitor widely applied insafety monitoring system and automation system at harsh and hazardous locationsin Petroleum, Petrochemical, Light Textile, Pharmaceutical, Metallurgy andElectricity industries.

Features

• High brightness, colorfulmonitoring interface

• Support single tank/ double tanksmonitoring, four tanks monitoring at most at the same time

• Support direct connection withanalog output (4-20mA) field instruments

• Support direct connection withfield instruments that use Modbus protocol to communicate

• Support direct connection withmanagement system server through Ethernet, display the storage tank data viaremote client

• Military rank wide-rangetemperature design, can be used in harsh environment, such as hyperthermia andalpine locations.

• Application: suitable forhazardous environment in Zone 1 and Zone 2.

Technical Specification

• Screensize: 7”,10.4” TFT LCD

• Resolution: 800x480/ 800x600

• Coler: 65536

• Brightness: >300 cd/m2

• Backlit: LED

• Ethernet: 1*10M/ 100M/ 1000Mbps

• Serial communication connector: 2* RS485, support Modbus protocol

Operating Environment

1. OperatingTemperature: Normal:-20~60 °C; Wide: -40~70 °C

2. StorageTemperature: Normal:-30~80 °C; Wide: -40~80 °C

3. Humidity: 10~90%RH(no condensing)


Electric parameter warning! There will be damages caused by overranged voltage or inversed wiring of positive and negative poles.

• Rated power consumption: 5W,Max 15W

• Rated voltage: DC24V,workable range: DC18V ~ DC32V

• Electrical connector: 3*1/2”explosion-proof sealed joints

• Explosion-proof class: ExdibIIB+H2T6
