explosion proof monitor, explosion proof remote display

Introduction

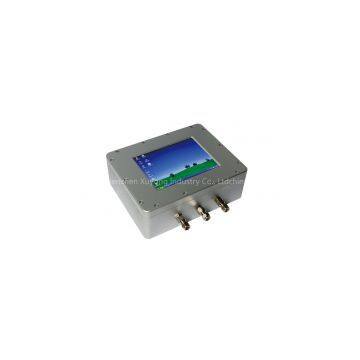

XY800type serial explosion proof monitor is a kind of explosion proof terminaldisplay equipment. It adopts high-resolution display screen. As a type ofterminal display equipment used in explosion proof sites, its explosion proofperformance and data processing rate can meet most user requirements. It iswidely used in machinery equipment automatic control system located inhazardous area with explosive gas or dust exists, such as in petroleum,chemical, light textile, medicine, metallurgy, electricity, and others.

Feature

l       Highlight screen, suitable for using in outdoor

l       Wide screen viewing angle

l       Industrial class wide range of temperature design, suitable forusing in frigid area

l       Support extension of VGA, LVDs, RS232, keyboard and etc. for remoteoperation

l       Safety: suitable for using in hazardous area with explosive gas ordust in Zone 1, Zone 2.

Technical parameters

l       Display screen: 12.1”, 15”, 17”, 19” TFT LCD screen

l       Resolution: 1024*768/ 1280*1024

l       Brightness: normal: >300cd/m2; high: >600cd/m2

l       Backlight: LED

l       LCD life: 50,000 hours

l       Signal: VGA/LVDs

l       Operating temperature: normal: 0~60 degree; wide: -40~70 degree

l       Storage temperature: normal: -20~60 degree; wide: -40~80 degree

l       Environment humidity: 10~90% RH(no condensation)

l       Rated power consumption: 5W, max 15W; high brightness: 20W

l       Rated voltage: AC220V or DC110V or DC24V

l       Electrical interface: 3*1/2” explosion proof sealed joints

l       Explosion proof class: ExdibIIB+H2(hydrogen)T6
