Home > Products > Microwave Motion Sensor > 800W 120 - 277V AC Microwave Motion Sensor MC019S ETL FCC R & TTE
800W 120 - 277V AC Microwave Motion Sensor MC019S ETL FCC R & TTE
- 0 Kilogram / Kilograms per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Megapixel 720P WDR Wireless Motion Sensor Hidden Camera
-
19V 3.4A Switch Power Supply Universal AC/DC Power Adapter For Notebook
-
Customized TFT LCD 15.1 Inch With Power Adapter And Pcb Serial Interface
-
Wall - mount 5A Slinky exterior laptop computer AC DC Switching Power Supply converter
-
75 Watt Constant Voltage Dimmable LED Driver 24V iP20 CE 30000h Life Time
-
IP20 Isolated Installation Integrated Sensor LED Driver 18W , 3 Step Dimming Function
Product Details
| Brand Name | Merrytek | Place of Origin | China | |
| Model Number | MC019S |
Product Description
Certification:ETL ,FCC, R&TTE

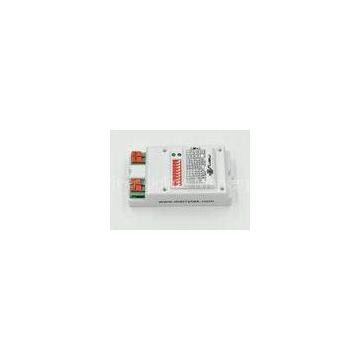

800W 120-277Vac Input ON-OFF Microwave Motion Sensor MC019S, ETL, FCC and R&TTE approval
Description:
1.?Automatic switching based on motion and ambient light level.
2. Without sacrificing PF of luminaries.
3.?Automatic daylight learning.
4. Zero-crossing point operation helps protect the sensor against in-rush current.
5. 5.8GHz high frequency microwave(C-Band license-free operation)
6.?4-pole press-in terminal (L, N, N,L′),easy assembly.
7.?Detection area, time delay and daylight threshold can be precisely set via DIP switch.
8. Two types of installation, suitable for different luminaries.
9.?MC019S is an innovative motion sensor, switch on the light on detection of movement, and switch off a hold time when there is no motion detected. As built-in daylight sensor can read brightness value, the sensor does not switch on the light if with sufficient in natural light.
Function:
ON-OFF function?
Detection Pattern:
Specifications:
|
Operating voltage |
120-270Vac, 50/60Hz |
|
Rated load |
Inductive:800W@227Vac,400W@120Vac |
|
HF system |
5.8GHz±75MHz, ISM wave band |
|
Power consumption |
≤0.5W(standby), <1W(operation) |
|
Transmitting power |
<0.5mW |
|
Detection zone Max.(D x H) |
16m x 9m |
|
Motion detection |
0.5~3m/s |
|
Detection angle |
150°(wall installation) 360°(ceiling installation) |
|
IP rating |
IP20 |
|
Operation temperature |
-35℃~70℃ |
|
Hold time |
10s/30s/90s/3min/20min/30min |
|
Detection sensitivity |
25％/50％/75％/100％ |
|
Daylight sensor |
5lux / 10lux / 30lux / 50lux / Disable |
|
Life time |
50,000 hours |
|
Guaranty |
5 years |
|
Daylight sensor |
5lux / 10lux / 30lux / 50lux / Disable |
Wiring:
