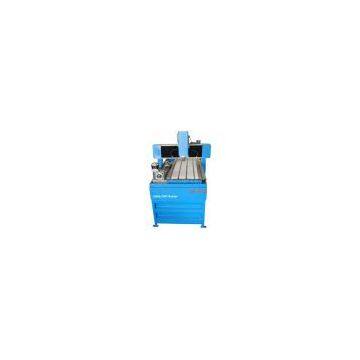

JK-6090 4 Axis Wood Engraving Machine
Negotiable
/ Set
1 Set(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | Jingke | Place of Origin | China | |
| Model Number | JK-6090 |
Product Description
JK-6090 4 axis woodworking machine:
Features and performance for JK-6090 4 axis wood engraving machine:
1. can be used to carve letters or designs and work mould on iron, steel, bronze,aluminum,ect.
2.The DSP control system uses 128M memory and supports USB disk direct output, which is more advanced and practical.
3.The independent control cubicle is advantageous for maintenance and be much safer.
4.Main spindle features:
2.2KW frequency conversion water cooling spindle with long use life and big power.
Permanent power main spindle can guarantee powerful processing under any random rotational speed.
5.Memory to insure the processing point when the blade is broken or postpone situation.
PARAMETERS :
| Model | JK-6090 |
| Machine body | whole cast iron |
| Work dimensions | 600×900mm |
| Z-axis working area | 200mm |
| Body dimensions | 800×1200×1200mm |
| X/Y/Z movement | Precision ball screw/Germany |
| Guide linear | 20 square rail/Taiwan |
| Cut thickness of material | 0-10cm |
| Max.Speed | 6000mm/min |
| Working speed | 0-4000mm/min |
| Machining pass | 5mm |
| Mechanical precision | 0.015mm |
| Software | Type3,Artcut,Artcam software |
| Power source | AC 220V/50-60Hz |
| Driver type | stepper motor |
| Spindle power | 2.2KW variable speed,water-cooled |
| Spindle speed | 0-24,000rpm |
| Tool diameter | 1-12.7mm |
| Collet | Collet ER2012.7mm, 6mm, and 3.175mm |
| Control system | DSP0501,128M |
| Command | HPGL.G code,u00,mmg,plt |
| Rotary | With rotary device |
