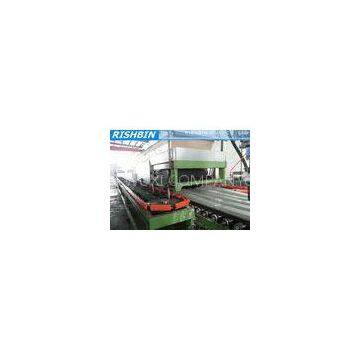

60 KW Power Discontinuous PU Sandwich Panel Production Line with 700 ~ 1000 Width

Brand Name	RISHBIN		Place of Origin	China

Delivery Time:100 working days
Certification:CE

60 KW Power Discontinuous PU Sandwich Panel Production Line with 700 ~ 1000 Width

Description:

Composition?of?machine

1.?Decoiler???

2.?Upper?and?lower?forming?machine??

3.?Pre-heating?table??

4.?Reaction?injection?machine?

5.Side?chemical?sealing?installation??

6.?Double-belt?laminator?

7.?Hot-air?circulator???

8.?Non?–stop?cutter?

9.?Run?out?table

Applications:

With?a?wide?range?of?different?colors,?available?in?cut-to-length?supply?and?ready-to-install,?

this?modern?building?product?takes?a?good?share?in?a?highly?economic,?weather-independent?and?fast,?

modular?building?process.

Beside?the?extremely?high?thermal-insulation?values?of?the?polyurethane-core,the?panels?create?

a?high?overall?stiffness?with?their?\"composite\"?function?and?therefore?support?very?good?statically?values.

Specifications:

NO.	ITEMS	UNIT	SP-PU-D

1 Color steel sandwich panel Specifications mm Width: 700 ~ 1000 Thickness: 30 to 150 custom length 2 Production line speed m/min 3~8 3 Double belt laminated conveyor length m 24m 4 The maximum temperature of the hot air circulation ℃ 70 5 Total power Kw 60 6 Line dimensions (L × W × H) mm About 86000×7000×3800 7 The total installed power capacity Kw About 207 8 Stove power Kcal 200,000

Main Features:

Discontinuous PU Sandwich Panel Production Line is a good choice with Economy investment, flexible size panel, high quality. Machine is to make the sandwich panel with the color steel sheet or galvanized sheet and the core of polyurethane discontinuously. The multi-layered laminator is consisted of the press and the rail stands. Two worktables move into the press and the other two stay on rail stands. Initially, put the top and the bottom sheets inside of mould frames and then seal, after that, feed the worktables into the press. When worktables inside the press moves out orderly, the other two feed in at the same time. Upon the finish of feeding, the press will close and slant at a angle, waiting for injecting PU raw materials from the PU mixing head into different panels. Meanwhile materials start foaming and curing. At this time, mould frames on worktables moved out for taking out the finished products, then to be ready for next production cycle. The main laminator 2+2 produces PU sandwich panel with fixed length such as 6m, 9m, 12m, adjustable width less than 1.2m, different thickness from 50mm to 250mm by the closed molding frame.

Sample Drawing

Quick?Detail:

The production line is mainly applied to make wall and roof panels of steel structure buildings, which can?
also make various other insulation panels if replacing facing sheet. Its operation principle is as follows: Rigidpoly foam raw materials, according to a certain blending ratio, are delivered into mixing head to agitate?
through metering pump unit on the injection machine and then uniformly injected onto the bottom facing sheet of sandwich panel. After the injection, the bottom facing sheet shall move toward the double belt?
conveyors together with panel’s top facing sheet.?
Between the two conveyors, injected raw material is foamed and hardened into shape. At the end of the line, the formed sandwich panel is cut into preset length by an automatic tracking cutter.
