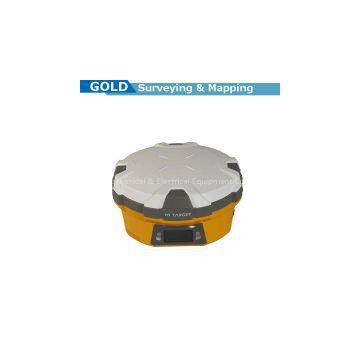

Dual Frequency GNSS RTK GPS Surveying System

Main Application:

1. Construction Layout

2. Electric power transportation

3. CORS application

4. CORS site

5. Control survey

6. Data collection

7. Water Measurement

8. Construction Positioning (water)

Main Features:

Smart Operation:

1. Visual LED screen and voice assistance guide your field operation quickly.

2. Multi one-button operations, Auto base setup by one button without controller.

3. Standard Rinex data and raw data recorded at the same time.

4. Quick upgrade by USB

Multi-constellation Tracking:

1. 220 tracking channels.

2. Supports GPS, CLONASS, BDS, SBAS.

3. NGS approved GNSS antenna.

Multi-constellation Tracking:

1. The transceiver UHF radio enables the working mode to be switchable between base and rover.

2. 2-watt internal UHF radio and 2-watt Pacific Crest TrimTalk internal radio are optional. Pacific Crest TrimTalk internal UHF radio is compatible with other radios.

Seamlessly Operation in CROS System:

1. Built-in cellular makes V60 work perfectly with network RTK positioning.

Powerful Battery:

1. Powered by high-capacity (5000mAh) Li-ion battery to insure whole day operation.

Rugged Designed, IP67:

1. IP67 dust/water protection.

2. Withstands 3-meter natural fall onto concrete.

Main Specification:

Measurement:

1. 220 channels

2. Advanced Pacific Crest Maxwell 6 Custom Survey GNSS Technology.

3. High precision multiple correlator for GNSS pseudo range measurements.

4. Unfiltered, unsmoothed pseudo range measurement data for low noise, low multipath error, low time domain correlation and high dynamic response.

5. Very low noise GNSS carrier phase measurement with <1 mm precision in a 1 Hz bandwidth

6. Signal-to-noise ratios reported in dB-Hz

7. Proven Pacific Crest low elevation tracking technology.

Satellites Signals Tracking Simultaneously:

GPS...................................Simultaneous L1/CA, L2C, L2E, L5

GLONASS....Simultaneous L1C/A,L1P,L2C/A(GLONASS M only),L2P

SBAS................................................Simultaneous L1 C/A, L5

Galileo......................Simultaneous L1BOC, E5A, E5B, E5AltBOC

BDS..............................................................................B1, B2

QZSS....................................................L1C/A, L1SAIF, L2C, L5

Positioning performance:

Static and Fast Static GNSS Surveying

Horizontal............................................2.5mm+0.5ppm RMS

Vertical.................................................5mm + 0.5ppm RMS

Post Processing Kinematic (PPK/Stop & Go) GNSS Surveying

Horizontal............................................1cm + 1ppm RMS

Vertical.................................................2.5cm + 1ppm RMS

Initialization time............................Typically 10 minutes for base while 5 minutes for rover

Initialization reliability................................Typically > 99.9%

Real Time Kinematic (RTK) Surveying

Horizontal..............................................8mm + 1ppm RMS

Vertical.................................................15mm + 1ppm RMS

Initialization time................................Typically < 8 seconds

Initialization reliability...............................Typically > 99.9%

Code Differential GNSS Positioning

Horizontal..............................................25Cm + 1ppm RMS

Vertical...................................................50Cm + 1ppm RMS

SBAS...................................0.5m Horizontal, 0.85m Vertical

Hardware:

Physical

Dimension (W * H)..................................18.2cm * 9.8cm (7.17inch * 3.86inch)

Weight..................................................1.25kg (2.76lb) without internal battery

Operation temperature..........................................-45℃ - +65℃ (-49F - +149F)

Storage temperature..............................................-55℃ - +85℃ (-67F - +185F)

Humidity.................................................................................100%, considering

Water/dust-proof....................................IP67 dust-proof, protecting from temporary immersion to depth of 1m (3.28ft)

Shock and vibration.........................Designed to survive a 3m (9.84ft)natural fall onto concrete.

Electrical

Power 6V to 28V DC external power input

Power consumption ≤ 3.5W

Automatic switching between internal power and external power

Rechargeable, removable 7.4V, 5000mAh Lithium-ion battery in internal battery compartment.

Internal Battery Life

Static 13 - 15 hours

RTK rover (UHF/GPRS/3G) 10 - 12 hours

RTK base 8 - 10 hours

Static 13 - 15 hours

I/O Interface

1 * Bluetooth

1 * standard USB2.0 port

1 * TNC UHF connector

2 * RS232 serial port

2 * DC Power input (8-pin & 5-pin)

1 * Micro SD card port

Communication and Data Storage 3G Communication

Fully integrated, fully sealed internal 3G, compatible with GPRS,GSM

Network RTK (via CORS) range 20-50km

Internal UHF Radio (Standard)

Frequency.......................................450-470Mhz 116 channels

Transmitting power..............................1W, 2W, 5W adjustable

Transmitting speed......................................9.6Kbps, 19.2Kbps

Working range.........................3~5km typical, 8-10km optimal

External UHF Radio (Standard)

Frequency.......................................460Mhz with 116 channels

Transmitting power.....................5W,10W,20W,30W adjustable

Transmitting speed.............................................up to 19.2Kbps

Working range......................8~10km typical, 15~20km optimal

Pacific Crest ADL Vantage Pro External UHF Radio (Standard)

Frequency....................................390~430MHz or 430~470MHz

Transmitting power....................................4w to 35w adjustable

Transmitting speed..............................................up to 19.2Kbps

Support most of radio communication protocol.

Working range.......................8~10km typical, 15~20km optimal

Support Other External Communication Device

For example, external GSM modem

Data Storage

F1GB Internal storage + 8GB Internal Micro SD Card memory (Support up to 32GB extension)

Record GNS and Rinex format simultaneously

Data Storage

F1GB Internal storage + 8GB Internal Micro SD Card memory (Support up to 32GB extension)

Record GNS and Rinex format simultaneously

Data Formats

(1Hz positioning output, up to 50Hz - depends on installed option)

CMR: sCMRx, CMR, CMR+input and output

RTCM: RTCM 2.1, 2.2, 2.3, 3.0, 3.1, 3.2 input and output

Navigation outputs ASCII: NMEA-0183 GSV,AVR,RMC,HDT,VGK,VHD,ROT,GGK,GGA,GSA,ZDA,VTG,GST,PJT,PJK,BPQ,GLL,DRS,GBS

Navigation outputs binary: GSOF
