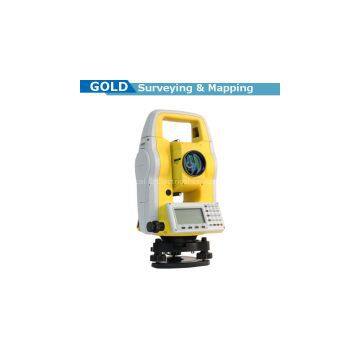

Digital Absolute Encoding Total Station

Main Features:

Dual-axis Compensation

This total station is configured with advanced dual-axis compensator for auto error elimination and auto accuracy compensation.

Absolute Encoding

The absolute encoding disk ensures high accuracy, efficiency and stable performance. Intialization is needless but to measure the angle immediately as this total station is turned on. The azimuth information won’t be missed even the total station is power-off unexpectedly.

High-performance MCU SMT32

The SMT32 MCU based on ARM Cortex-M processor enables this total station extra high processing speed and low-power consumption.

Bluetooth

The bluetooth wireless technology makes this total station accessible to any data collector for real-time communication. The third party field software such as Carlson SurvCE is fully compatible with this total station.

Data storage

Diversified data transfer options such as SD card, USB pen drive, mini-B interface

Backlight

The display and keyboard with backlight for working in the dark.

Diagonal eyepiece

Support diagonal eyepiece for observation at steep line of sight.

Calibration Software

The proprietary calibration software is accessible for real-time diagnosis to ensure trouble-free operation.

Data transfer software

The proprietary data transfer software supports different type of output data format, which can be used in auto-CAD or other brands post processing software.

Main Specification:

Angle Measurement

Measurement method:  Absolute encoding

Minimum readout:  1’’/5’’/10’’ (0.3mgon/1.5mgon/3mgon) adjustable

Accuracy:  2’’

Distance measurement GTS-320 with reflector

Single prism:  3000m(9,842ft.) under good condition

Three prisms:  6000m(19,685ft.) under good condition

Reflective sheet:  800m (2.624ft.)

Accuracy:  2mm + 2ppm

Measuring time (fine/quick/tracking):  1.5s/1s/0.5s

Distance measurement GTS-320 without reflector

Reflector less range:  350m (1,148 ft.)

Single prism:  >7500m (24,606 ft.)

Accuracy:  3nn + 2ppm

Measure time:  1.5s

Telescope

Magnification:  30x

Field of view:  1°30’ (2.7m at 100m)

Minimum focus distance:  1.5m

Reticle:  Illuminated

Compensator

System:  single-axis liquid tilt sensor/Dual-axis (optional)

Working range:  ±3’

Setting accuracy:  1’’

Communication

Bluetooth

Interface:  standard RS232, SD card, USB pen drive, mini B

Internal data memory:  approx. 2000 points

Data format:  ASCII

Operation

Operation system:  Real-time operating system

Display:  High-resolution backlight black and white display with contrast adjustment

Graphics:  192 * 96 pixels

Character:  6 lines * 25 characters

Keyboard:  2 sides alphanumeric backlit crystal keyboard

Laser plummet

Type:  laser point 4 brightness levels, adjustment/optical plummet (optional)

Centering accuracy:  1mm at 1.5m instrument height

Power supply

Battery type:  rechargeable Li-ion battery

Voltage/capacity:  ZBA-400; 7.4v (DC)/3000mAH

Operating time with ZBA-400:  optimal 16 hours (continuous angle measurement very 30 seconds)/10 hours (typical)

Measuring times:  Approx. 12000 times

Weight

Approx. 5.5kg(12.1lb) (incl. Battery and Tribrach)

Environmental

Operating temperature:  -20℃ ~ +50℃ (-4f to +122f)

Storage temperature:  -40℃ ~ +70℃ (-40f to +158f)

Dust&water proof (IEC60529 standard)/Humidity:  IP65/95% non-condensing
