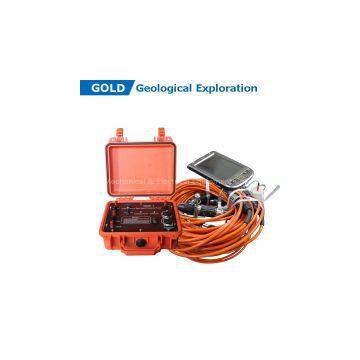

Multi-parameter Digital Distributed Underground Resistivity And IP Imaging System

Main Application:

The instrument is our newly developed product with years of research and production experience of advanced electrical tool, which includes many advanced elentronic technique such as all-chinese pocket PC, blue tooth, 24 bit A/D, and large power control. This tool has small size and light weight, and its main technique specifications and functions are more advanced than similar tools abroad and home can be applied in different complex regions. It has been applied widely in metal and non-metal mineral propecting, civil propecting, railway, bridge, etc. It can also be applied in underground water, water reservoir dam foundation, jetty hidden trouble, and geothermal exploration.

Technical specifications:

Receiving part

1. voltage channel: ±32V(24 bitA/D)

accuracy: as Vp≥5mV, ±0.2% ±1 character

as 0.1mV≤Vp<5mV, ±1% ±1 character

2. Input impedance: >50MΩ

3. Apparent polarization accuracy: ±1%±1character

4. SP compensation range: ±10V

5. Current channel: 6A(24bitA/D)

measurement accuracy: as Ip≥5mA, ±0.2% ±1character

   as 0.1mA≤Ip<5mA, ±1% ±1character

6. As for 50Hz industrial interface(common and different mode)depression is better than 80dB

Transmitter part

1. maximium power: 7200W

2. maximium supply voltage: ±1200V

3. maximium supply current: ±6A

4. supply current width :1~60s, duty rate 1:1

Other

1. working temperature: -10℃~+50℃,95%RH

2. storge temperature: -20℃~+60℃

3. power supply: builtin 7.4V4Ah(or outside 12V), lasting for 20h

4. main unit port: A, B, M, N, DC high voltage, outside battery, 2 cable port, RS-232, blue tooth

5. weight: ≤4kg

6. size : 270mm×246mm×123mm

Pocket PC

1. Windos Mobile 5.0 system, 624MHz, 640×480true color, 128MB Flash ROM / 64MB SDRAM,512MB CF card, blue tooth, infrared, serial port, 2 rechargeable batteries, with Word, Excl.
