Compact Strain Gauge Load Cell 20kg 30kg With Low Profile For Weighing Scale
- T/T L/C D/P D/A
- 7 days
You May Like
-
Stainless Steel Force Load Cell With Strain Gage Column Type 2klb To 60klb
-
Compressive Transducer Strain Gauge Load Cell Weighing 10t For Tank
-
Miniature Strain Gauge Load Cell Compression Sensor of Alloy Steel 30t To 50t
-
Small Double Ended Bending Beam Load Cell Strain Gauge Force Sensor 20kg 500kg
-
Electronic Scale Single Point Load Cell Transducer 6kg To 20kg , Waterproof IP65
-
Mechanical Capacitive Load Pin Load Cells , Crane Load Cell Transducer
Product Details
| Brand Name | tecsis | Place of Origin | China | |
| Model Number | F1821 |
Product Description

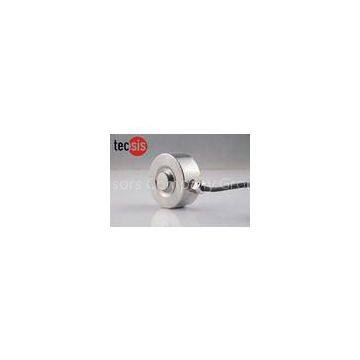

Compact Strain Gauge Load Cell 20kg 30kg With Low Profile For Weighing Scale
Features :
Model:F1821 Capacity: 20kg~10t Simple structure, four holes,?easy?to?install? High comprehensive precision, high stability Made of stainless steel Small deflection Delicate structure,?Low profileDescription:
F1821 is a stainless steel load cell, it can measure the compression force.
lts capacities range from 20kg to 10t but all of the diameter is 50mm and the height is 25mm.
It comes complete with 1.5m of load cell cable.
The cable outlet is pressing nut. the protection class is IP67.
Stainless steel construction. Fully welded seal with stainless steel cover for hostile environment applications.?
There are four holes in the background of the load cell, this makes it easy to install.
Apply for mechanical assembling, stamping force test and control which precision requirements are undemanding.Like pressing machine, Bearing assembly machine.?
Transient force measurement and control of dynamic stamping equipment.
Hopper scale and tank scale dynamic weight control.
Application:
F1821 is suitable for a wide range of applications including testing or weighing systems, and it can be put into the device, in order to monitor the force.?Widely used for industrial?measurement and control, R&D and other applications
Technical parameters:
|
Specifications |
Technique |
|
Rated output |
1.5±10%mV/V |
|
Zero balance |
±2% F.S. |
|
Non-linearity |
0.5% F.S. |
|
Hysteresis |
0.1% F.S. |
|
Repeatability |
0.1% F.S. |
|
Creep (30min) |
0.05% F.S. |
|
Temp. effect on output |
0.05% F.S. / 10oC |
|
Temp. effect on zero |
0.05% F.S. / 10oC |
|
Input impedance |
385±10Ω |
|
Output impedance |
350±3Ω |
|
Insulation |
≥5000MΩ/ 100VDC |
|
Recommended excitation |
10V |
|
Maximum excitation |
15V |
|
Compensated temp. range |
- 10~60oC |
|
Operation temp. range |
- 20~80oC |
|
Safe overload |
150% F.S. |
|
Ultimate overload |
200% F.S. |
|
Cable size |
?4×1500 mm |
|
Protection class |
IP67? |
|
Cable color code |
Input: Red(+) Black(-); Output: Green(+) White(-); |
Size and capacity:
Schematic Wiring Diagram :
