Small Wireless Torque Multi Axis Load Cell Strain Gauge For Testing
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Waterproof Multi Axis Load Cell 20kg To 1000kg Force Sensor With Stainless Steel
-
High Capacity Compression Lode Cell Sensor Reaction Force Sensor
-
Portable Industrial Ati Force Torque Sensor Impact Transducer Load Cell
-
Small Strain Gauge Force Torque Sensor Column Load Cell , High Accuracy
-
High Precision Load Cell Force Rotary Torque Transducer / Magnetic Torque Sensor
-
Multi Axis Force Torque Sensor Measurement Using Strain Gauge Load Cell
Product Details
| Brand Name | tecsis | Place of Origin | China | |
| Model Number | F9804 |
Product Description

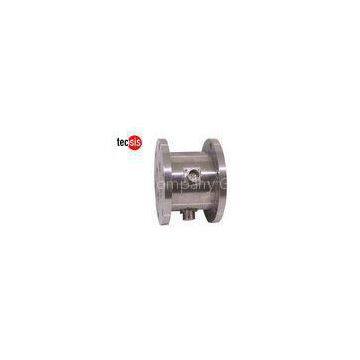

Small Wireless Torque Multi Axis Load Cell Strain Gauge For Testing
Features :
Model:F9804 Capacity: 20kg~1t Three dimensional force sensor Made of stainless steel Rugged structure ?IP65 protection With metal foil strain gauge technology Overload protection on robot heads ?Automation tools, used for test rigsDescription:
F9804 is a Three dimensional force sensor. It is made of stainless steel, rugged structure. This load cell is with metal foil strain gauge technology, overload protection on robot heads, it is suitable for automation tools, used for test rigs.
Application:
?It is suitable for automation tools, used for test rigs.
Technical parameters:
|
Specifications |
Technique |
|
Rated output |
1.0±10%mV/V |
|
Zero balance |
±2% F.S. |
|
Non-linearity |
0.5% F.S. |
|
Hysteresis |
0.25% F.S. |
|
Repeatability |
0.25% F.S. |
|
Creep (30min) |
0.05% F.S. |
|
Temp. effect on output |
0.05% F.S. / 10oC |
|
Temp. effect on zero |
0.05% F.S. / 10oC |
|
Input impedance |
385±30Ω |
|
Output impedance |
350±5Ω |
|
Insulation |
≥5000MΩ/ 100VDC |
|
Recommended excitation |
10V |
|
Maximum excitation |
15V |
|
Compensated temp. range |
- 10~60oC |
|
Operation temp. range |
- 20~80oC |
|
Safe overload |
120% F.S. |
|
Ultimate overload |
200% F.S. |
|
Cable size |
3×?3×1500mm |
|
Protection class |
IP65 |
|
Cable color code |
Input: Red(+) Black(-); Output: Green(+) White(-); |
Size and capacity:
Schematic Wiring Diagram :
