Product Details

Brand Name	tecsis		Place of Origin	China
Model Number	F2806

Product Description

Delivery Time:Stock product:3~5 working days , No stock:10~35 days

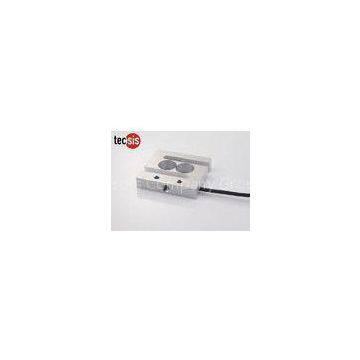

High Precision Impact S - Beam Crane Scale Load Cell Strain Gauge 100kg

Features :

Model:F2806 Tension and compression load cell High comprehensive precision, high stability Simple structure, easy?to?install? Small size, easy to use Made of?Aluminum alloy or Alloy steel Capacity:1kg~200kg

Description:

F2806?has?good output symmetry, compact structure, simple to install, because of its internal and external features, it can support compression and tension, and be mainly used for the tensile testing, for example, the testing of force gauge, this is a best choice in tensile testing machine,

It has full range of capacities (the minimum capacity is 1kg, the maximum is 200kg), so it is available for small weighing device, for 1~30kg, it is made of?the Aluminum material, for 50~200kg, it is made of alloy steel. It has many limiting conditions on environment, so it is applied for dry and no corrosion environment.

Applications:

S-type designing can be installed easily, which be available for ?crane scales, electronic mechanic Scales, hopper and tank weighing, packing scales, quantitative feeding machine, filling machine, universal material testing machine and other electronic weighing devices.

Technical parameters:

Specifications	Technique
Rated output	2.0±10%mV/V
Zero balance	±2% F.S.
Non-linearity	0.03% F.S.
Hysteresis	0.03% F.S.
Repeatability	0.02% F.S.
Creep (30min)	0.03% F.S.
Temp. effect on output	0.025% F.S. / 10oC
Temp. effect on zero	0.025% F.S. / 10oC
Input impedance	410±10Ω 385±10Ω (Alloy steel)
Output impedance	350±5Ω
Insulation	≥5000MΩ/ 100VDC
Recommended excitation	5V
Maximum excitation	15V
Compensated temp. range	- 10~60oC
Operation temp. range	- 20~80oC
Safe overload	150% F.S.
Ultimate overload	200% F.S.
Cable size	?3×1500 mm AWG28# (Option)
Protection class	IP65
Cable color code	Input: Red(+) Black(-); Output: Green(+) White(-);

Size and capacity:

Schematic Wiring Diagram :
