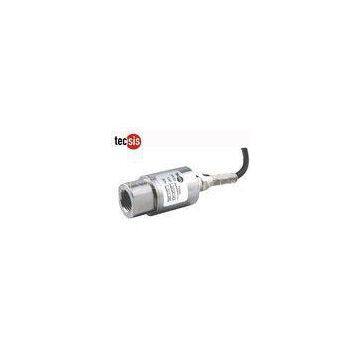

Mechanical Hydraulic Pressure Sensor Gauge / Pressure Transducer Sensor
- T/T L/C D/P D/A
- 7 days
You May Like
-
Wireless Miniature Hydraulic Pressure Transducer Sensor With High Temperature
-
Electronic Hydraulic Pressure Sensor Waterproof IP68 For Water Level Measurement
-
Micro Contact Hydraulic Pressure Sensor With Stainless Steel 5Mpa To 60Mpa
-
Small Hydraulic Force Sensor , Electronic Water Pressure Sensor
-
Compact Strain Gauge Load Cell 20kg 30kg With Low Profile For Weighing Scale
-
Stainless Steel Force Load Cell with Strain Gage Column Type 2klb To 60klb
Product Details
| Brand Name | tecsis | Place of Origin | China | |
| Model Number | P3805 |
Product Description
Mechanical?Hydraulic?Pressure?Sensor?Gauge?/?Pressure?Transducer?Sensor
Features :
Model:P3804 Hydraulic pressure sensor High comprehensive precision, high stability Capacity:-0.1~35Mpa Made of?stainless steelDescription:
P3804 hydraulic pressure sensor is Made of stainless steel, It has a small size and with high sensitivity. It is suitable for??Hydraulic, die-casting, central?air conditioning system, constant pressure?water supply,?locomotive braking systems,?light industry, machinery, metallurgy,?petrochemical, environmental protection,?air compressor and other automatic control?systems.
Applications:
It is suitable for??Hydraulic, die-casting, central?air conditioning system, constant pressure?water supply,?locomotive braking systems,?light industry, machinery, metallurgy,?petrochemical, environmental protection,?air compressor and other automatic control?systems.
Technical parameters:
|
Specifications |
Technique |
|
|
Output signal |
2 wires |
4~20mA |
| 3 wires | 0~5V, 1~5V, 0~10V | |
| 4 wires | 0~10mV | |
| Comprehensive accuracy | 0.25~0.5% F.S. | |
| Power supply | 5~10VDC( Sensor) 12~30VDC(Transmitter) |
|
|
Medium temperature |
-20oC~85oC |
|
|
Ambient temperature |
-20oC~85oC |
|
|
Load resistance |
Voltage type ≥50kΩ |
|
|
Insulation |
≥5000MΩ / 50VDC |
|
|
Response time |
10ms |
|
|
Protection class |
IP65 |
|
|
Long term stability |
0.1% F.S./ Year |
|
|
Vibration effects |
Impact is less than 0.2% F.S. |
|
|
Electrical interface |
M12×1 Hessman lines |
|
|
Thread connection |
M12×1,Check the selection?table |
Size and capacity:
