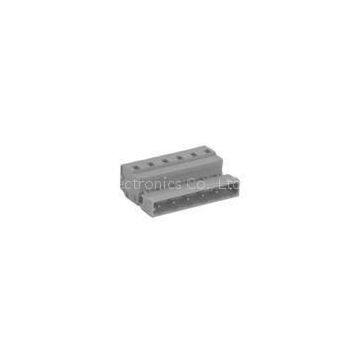

6P Male 24 - 14 AWG 0.2 - 2.5 mm2 7.5mm pitch MCS Connector With Fixing flanges
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Straight Solder Pin 24 - 12AWG MCS Connector , Pitch 5.0mm PA66
-
6P 7mm Pitch 24 - 14 AWG Male MCS Connector With Spring-cage Clamp
-
Multi Pin Strip Female 250V 16A 15A MCS Connector with Spring Cage Clamp
-
Right Angle Solder Pin 28 - 12 AWG MCS Connector for PCB SP475 / SP478
-
400V 12A 5 Pole Female Straight Solder Pin MCS Connector Pin Size1.0 1.0mm
-
400V 16A 0.2 - 2.5 mm2 MCS Connector Protected against Mismating Light Gray
Product Details
| Brand Name | SUPU | Place of Origin | China | |
| Model Number | SP475 |
Product Description
Certification:ROHS, ISO9001, COC, CE, CB, TUV
6P Male 24 - 14 AWG 0.2 - 2.5 mm2 7.5mm pitch??MCS Connector With Fixing flanges?
Quick details
2-24 Male Connectors With Spring-cage Clamp
Pitch 7.5mm/0.295in.
Wire Range 0.2-2.5mm2/24-14AWG.
400V 16A 300V 15A
Applied for any kind of wires
Order No.:475406 (Gray)
◆ As PCB Connectors,
◆?As feed-through plug connector,
◆?As plug connectors on rail-mounted terminal blocks,
◆?As plug-in connection for flying leads for different types of assembly,
◆?Applied in PCB, heat pump controller,?the door control of a lightrail.
|
Part Name: |
2-24 Male Connectors With Spring-cage Clamp. |
|||
|
Pitch: |
7.5mm/0.295in |
|||
|
IEC |
UL |
CSA |
||
|
Rated Voltage: |
400V |
300V |
300V |
|
|
Rated Current: |
12A |
15A |
15A |
|
|
Wire Range |
0.2-2.5mm2/24-14AWG??? |
|||
|
Available Poles: |
2-24 |
|||
|
Strip length (mm/in): |
8-9mm/0.33 in |
|||
|
Wires: |
Applied for any kind of wires |
|||
|
Pin Size: |
1.0×1.0mm |
|||
|
Peak Voltage: |
4KV |
|||
|
Weight: |
g |
|||
|
Pollution Severity: |
3 |
|||
|
UL94 Insulation Material: |
V 0 or V 2 |
|||
|
Insulation Material: |
PA66 |
|||
|
Color: |
Gray |
|||
|
Packing: |
100PCS |
|
Picture |
Name |
Order No. |
|
?Mounting Tool |
?450014 |
|
|
?Jumper |
?450012 |
