Product Details
| Brand Name | SUPU | Place of Origin | China | |
| Model Number | SP450 |
Product Description
Certification:ROHS, ISO9001, COC, CE, CB, TUV

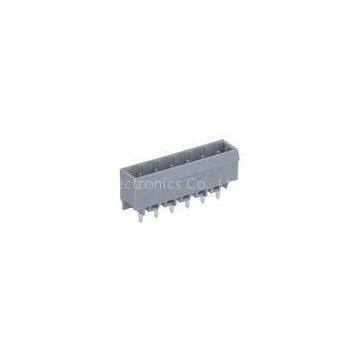

Spring Clipping Rail-mounted MCS Connector 2 - 24 pole SP450 SP458 Gray
Quick details
2-24 Straight solder pin.
300V 12A 15A
0.2-2.5mm2/24-12AWG??
Gray color
2-24 Straight solder pin
Order No.:450206(Gray).
◆?As PCB Connectors,
◆As feed-through plug connector,
◆?As plug connectors on rail-mounted terminal blocks.
◆?As plug-in connection for flying leads for different types of assembly,
◆?Applied in PCBs, heat pump controller,the door control of a lightrail.
Article: | 2-24 Straight solder pin |
|||
Pitch: | 5.0mm/0.197in |
|||
IEC | UL | CSA | ||
Rated Voltage: | 300V | 300V | 300V | |
Rated Current: | 12A | 15A | 15A | |
Wire Range | 0.2-2.5mm2/24-12AWG??? |
|||
Available Poles: | 2-24 | |||
Strip length (mm/in): | 8-9mm/0.33 in |
|||
Wires: | Applied for any kind of wires |
|||
Connect Ways: | spring-clipping |
|||
Peak Voltage: | 4.0KV |
|||
Weight: | g |
|||
Pollution Severity: | 3 |
|||
UL94 Insulation Material: | V 0 or V 2 |
|||
Insulation Material: | PA66 |
|||
Color: | Gray |
|||
Packing: | 100PCS |
