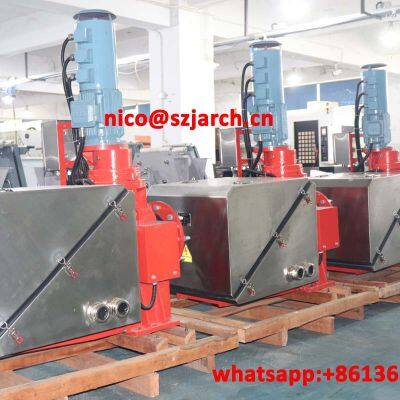

5.5kw Single motor high voltage cable reel for Crane, Port terminal, power plant

Hysteresis type cable drum

Hysteresis type cable drum is through the magnetic transmission motor torque to control hoisting cable.

It is adopt hysteresis dish sliding device,it can be in synchronous operation with the mobile electric apparatus to coil up or spool off the cables. It has  compact structure, small volume ,tension constant feature etc.It is widely apply to the power of electrc apparatus on large-scale mobile device。

1.Outline

The  magnetic lag type cable drum is transmits the power supply for the large-scale mobile hoisting equipment between two relative vehicles, the control supply or the control signal coiling installment. It widely applies in the harbor gate place hoist crane, the container hoist crane, the ship loader, the tower crane and so on similar operating mode heavy duty machinery equipment.

The magnetic lag type cable drum is in the present cable winder the ideal coiling equipment, it with the commonly used counterweight type, the moment of force electrical machinery type cable drum compares, has the volume to be young, function entire, the installment service is convenient, the approximate permanent tensity, may act according to the actual operating mode request adjustment output torque, and has good from the brake function, does not need to install the brake, the cable drum movement is reliable, can stop up for a long time transfers, but does not damage.

2.Use environment

a)The elevation does not surpass 2000m

b)Ambient temperature - 20°C~+45°C

c)Permits the outside work

Features:

1. With large coiling capacity, the cable drum can coil cable or hose of large specification from long distance;

2. Long service life, reliable operation;

3. With torque adjustment and interlocking control device, it's convenient to adjust the coiling strength, and flexible to coil and release;

4. Electric energy is transmitted by the structure of

collector slip ring carbon brush, the power supply is continuous and stable.

5. Reverse running is available, it's convenient to change cable.

700A motor type slip ring cable reel with gear box motorized cable reel for hoist

Factory direct sale Retractable Industrial Cable Reel for hoist, crane

According to the driving form, the cable reel can be divided into non-electric type and electric type.

According to the arrangement of cables, it can be divided into two types: axial single row and axial multiple row.

According to the position of the collector slip ring, it is divided into two forms: inner slip ring type and outer slip ring type.

According to the winding material is divided into cable reel and hose reel.

25sqmm 50m holder auto rewind spring loaded cable reel drum for hoist

motorized cable reel spring loaded cable reel drum for hoist
