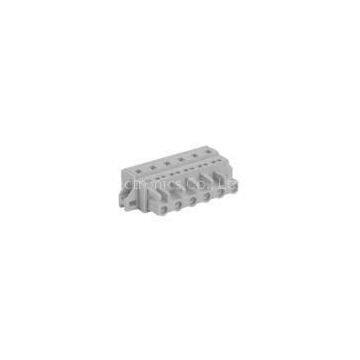

Female Spring Cage Clamp 400V 16A MCS Connector Pitch 7.5mm / 0.295in
- 0 Kilogram / Kilograms per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Female 4P 9P 15P 24 - 14 AWG MCS Connector with Spring - Clipping Connect Ways
-
Female Feed-through Plug MCS Connector on Rail - Mounted Terminal Blocks
-
400V 16A 0.2 - 2.5mm Female MCS Connector with locking device SP475
-
400V 16A 300V 15A 28 -12 AWG Female connector with spring - cage clamp with locking device
-
2-24 Pole 7.5mm Pitch 300V 15A 24 - 14 AWG MCS Connectors With Fixing Flange
-
PCB Male 0.2 - 2.5mm2 / 28 - 12 AWG MCS Connector With Spring Cage Clamp
Product Details
| Brand Name | SUPU | Place of Origin | China | |
| Model Number | SP475 |
Product Description
Certification:ROHS, ISO9001, COC, CE, CB, TUV
Female Spring Cage Clamp 400V 16A? MCS Connector Pitch 7.5mm / 0.295in
Quick details
2-24 Female Connectors With Spring-cage Clamp
Pitch 7.5mm/0.295in.
400V 16A 300V 15A
Wire Range 0.2-2.5mm2/24-14AWG.
Order No.:475606/010(Light-Gray).
◆As PCB Connectors,
◆?As feed-through plug connector,
◆?As plug connectors on rail-mounted terminal blocks.
◆?As plug-in connection for flying leads for different types of assembly,
◆?Applied in PCB,heat pump controller,?the door control of a lightrail.
|
Article: |
2-24 Female Connectors With Spring-cage Clamp With Fixing |
|||
|
Flanges 100% Protected Against Mismating |
||||
|
Pitch: |
7.5mm/0.295in |
|||
|
IEC |
UL |
CSA |
||
|
Rated Voltage: |
400V |
300V |
300V |
|
|
Rated Current: |
16A |
15A |
15A |
|
|
Wire Range |
0.2-2.5mm2/24-14AWG??? |
|||
|
Available Poles: |
2-24 |
|||
|
Strip length (mm/in): |
8-9mm/0.33 in |
|||
|
Wires: |
Applied for any kind of wires |
|||
|
Connect Ways: |
spring-clipping |
|||
|
Peak Voltage: |
4KV |
|||
|
Weight: |
g |
|||
|
Pollution Severity: |
3 |
|||
|
UL94 Insulation Material: |
V 0 or V 2 |
|||
|
Insulation Material: |
PA66 |
|||
|
Color: |
Light-Grey |
|||
|
Packing: |
100PCS |
|
Name |
Order No. |
|
?Mounting Tool |
?450014 |
|
?Jumper |
?450012 |
