Home > Products > Magnetic Assemblies > Permanent Magnetic Assemblies , Alnico Shallow Pot Magnet

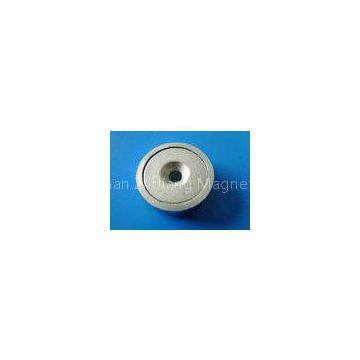

Permanent Magnetic Assemblies , Alnico Shallow Pot Magnet
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Button shallow Magnetic Assemblies , alnico powerful pot magnet
-
Various Shapes Casting Alnico 5 Magnet , High Density And Magnetic
-
7.3 g/cm3 Density Blocks Alnico 5 Magnet For Guitar Pickup Using
-
5kOe Magnetizing Dield Alnico 5 Magnet Bar For Aerospace
-
Alnico 5 Magnet Odemeter Magnet , Meter Magnet , Motorcycle Magnet
-
Plastic Injection Alnico 5 Magnet Odemeter Magnet , High Magnetic
Product Details
| Brand Name | ZJMAG | Place of Origin | China | |
Product Description
Certification:ISO 9001: 2008
? Permanent Magnetic Assemblies , Alnico Shallow Pot Magnet
Quick Detail:
1.Magnetic Assemblies concentrate magnetic power
2.Manufacturing process –Fixed or bonded
3.Various shapes –Round Pot or Button Shape
Magnetic assemblies are components made from permanent magnets and steel parts (and/or some non-ferrite magnetic insulate materials, such as Brass and Aluminum) fixed or bonded together. Thanks to the magnetic field design, a magnetic assembly has a particular magnetic circuit that can concentrate or insulate magnetic power at a target space around the magnetic assembly. In this way, magnetic assemblies can be utilized for holding, retrieving, moving, lifting and mounting steel parts in different industrial applications.
Specifications
Alnico Deep Pot Magnet
|
Part No. |
Dia. (MM) |
Height(MM) |
Screw Hole(MM) |
Lifting (kgs) |
|
A101 |
9.50 |
15.1 |
M3 |
1.0 |
|
A102 |
12.7 |
15.8 |
M4 |
2.0 |
|
A103 |
17.5 |
16.0 |
M6 |
3.0 |
|
A104 |
20.5 |
19.0 |
M6 |
5.0 |
|
A105 |
27.0 |
25.0 |
M6 |
10.0 |
|
A106 |
30.0 |
35.0 |
M6 |
15.0 |
|
A107 |
35.0 |
20.0 |
M6 |
15.0 |
|
A108 |
35.0 |
30.0 |
M6 |
18.0 |
|
A109 |
40.0 |
30.0 |
M8 |
30.0 |
|
A110 |
40.0 |
35.0 |
M6 |
35.0 |
|
A111 |
45.0 |
25.0 |
M6 |
15.0 |
|
A112 |
45.0 |
30.0 |
M8 |
40.0 |
|
A113 |
50.0 |
40.0 |
M8 |
50.0 |
|
A114 |
65.0 |
43.0 |
M12 |
60.0 |
|
Part No. |
Dia. (MM) |
Height(MM) |
Screw Hole(MM) |
Lifting (kgs) |
|
A201 |
44.5 |
44.5 |
M8 |
20 |
|
A202 |
54.0 |
