High Quality Magnetic Assemblies , Holding Pot / Button Magnets
- 0 Kilogram / Kilograms per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
32MGOe Samarium Cobalt Magnet / Sintering Fan Magnet For Rotors
-
Rare Earth Samarium Cobalt Magnet , Disc Magnet For Sensors
-
Block Samarium Cobalt Magnet For DC Brushless Motors / Engine
-
Rare Earth Samarium Cobalt Magnet , Sm2Co17 Ring Magnet Magnetic
-
Bullet Cast Alnico Magnet , Alnico 5 Pencil Magnet For Instruments
-
Irregular Cast Alnico Magnet , Alnico 8 Magnet Complex shapes Magnet
Product Details
| Brand Name | ZJMAG | Place of Origin | China | |
Product Description
Certification:ISO 9001: 2008

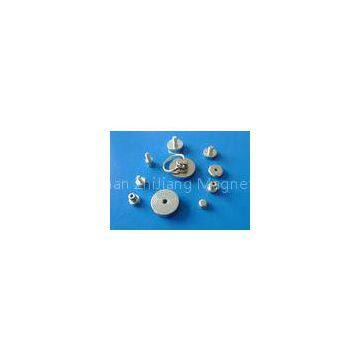

High Quality Magnetic Assemblies , Holding Pot / Button Magnets
Quick Detail:
1.Magnetic Assemblies concentrate magnetic power
2.Manufacturing process –Fixed or bonded
3.Various shapes –Round Pot or Button Shape
Magnetic assemblies are components made from permanent magnets and steel parts (and/or some non-ferrite magnetic insulate materials, such as Brass and Aluminum) fixed or bonded together. Thanks to the magnetic field design, a magnetic assembly has a particular magnetic circuit that can concentrate or insulate magnetic power at a target space around the magnetic assembly. In this way, magnetic assemblies can be utilized for holding, retrieving, moving, lifting and mounting steel parts in different industrial applications.
Specifications
Alnico Deep Pot Magnet
|
Part No. |
Dia. (MM) |
Height(MM) |
Screw Hole(MM) |
Lifting (kgs) |
|
A101 |
9.50 |
15.1 |
M3 |
1.0 |
|
A102 |
12.7 |
15.8 |
M4 |
2.0 |
|
A103 |
17.5 |
16.0 |
M6 |
3.0 |
|
A104 |
20.5 |
19.0 |
M6 |
5.0 |
|
A105 |
27.0 |
25.0 |
M6 |
10.0 |
|
A106 |
30.0 |
35.0 |
M6 |
15.0 |
|
A107 |
35.0 |
20.0 |
M6 |
15.0 |
|
A108 |
35.0 |
30.0 |
M6 |
18.0 |
|
A109 |
40.0 |
30.0 |
M8 |
30.0 |
|
A110 |
40.0 |
35.0 |
M6 |
35.0 |
|
A111 |
45.0 |
25.0 |
M6 |
15.0 |
|
A112 |
45.0 |
30.0 |
M8 |
40.0 |
|
A113 |
50.0 |
40.0 |
M8 |
50.0 |
|
A114 |
65.0 |
43.0 |
M12 |
60.0 |
|
Part No. |
Dia. (MM) |
Height(MM) |
Screw Hole(MM) |
Lifting (kgs) |
|
A201 |
44.5 |
44.5 |
M8 |
20 |
|
A202 |
54.0 |
