Customized OEM Alnico 8 Magnet With Good Corrosion Resistance
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Ground surface Alnico 8 Magnet With High Density And Magnetic
-
Plastic Injection Cast Alnico Magnet For Water And Electricity Meters
-
Radial Magnetized Magnet , Cast Alnico 5 and Alnico 8 Base Magnets for Generators
-
Single Crystal Cast Alnico Magnet , Alnico 9 Crystal Magnet Used in Dectector OEM
-
Horseshoe Cast Alnico Magnet , Arc Magnets For Magnetic Motors
-
Alnico 5 Cast Alnico Magnet for Magnetic Gauges and Instruments
Product Details
| Brand Name | ZJMAG | Place of Origin | China | |
| Model Number | 81000 |
Product Description
Certification:ISO 9001: 2008
? Cast Surface Alnico 8 Magnet With Good Corrosion Resistance
Quick Detail:
1. Density - 7.3 g/cm3
2. Manufacturing process - casting (most common)

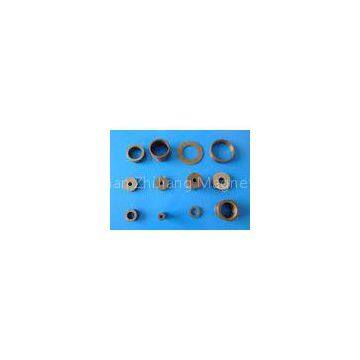

3. Various shapes- blocks, bars, discs, rings, horseshoes, cylinders, etc.
4. Cast Surface
Cast Alnico magnet is composed primarily of Aluminum, Nickel, Cobalt, Copper and Iron. It has very good corrosion resistance and high temperature operation.
Although other magnetic materials offer greater energy and coercivity values, the high remanence and thermal stability of AlNiCo makes it the most effective magnetic material for certain applications, like generator, microphone, lifting, voltmeter and measuring instruments. It is widely applied in high stability fields like aerospace, military, automobile and security systems.
|
Physical Properties of Cast Alnico |
|
|
Curie Temperature (℃) |
760-890 |
|
Max. Operating Temperature (℃) |
450-550 |
|
Resistivity (μohm.cm) |
47-54 |
|
Hardness (Hv) |
520-630 |
|
Density (g/cm3) |
6.90-7.30 |
|
Relative Recoil Permeability (μrec) |
1.70-4.70 |
|
Saturation Field Strength (kOe,kA/m) |
2.7-6.3/215-500 |
|
Temperature Coefficient of Br (%/℃) |
-0.025 ~ -0.02 |
|
Temperature Coefficient of iHc (%/℃) |
+0.01 ~ +0.03 |
Applications:
Holding??magnets????
Sensors and transformers
Security??systems?
Relays
Chucks
Instrumentations
Magnetic switches
Safety Controls
Motors and Generators
Receivers
Telephones
Microphones
Bell ringers
Loudspeakers
Performance of Cast AlNiCo Magnets
|
Grade |
Br |
Hcj |
Bhmax |
D |
MMPA |
α %/°C |
TC. |
TW. |
|
*LNGT18 |
5.8(580) |
1250 (100) |
2.20 (18.0) |
7.3 |
Alnico8 |
-0.02(+0.03) |
860 |
550 |
|
LNGT32 |
8.0(800) |
1250 (100) |
4.00 (32.0) |
7.3 |
Alnico8 |
-0.02(+0.03) |
860 |
550 |
|
LNGT40 |
8.0(800) |
1380 (110) |
5.00 (40.0) |
7.3 |
Alnico8 |
-0.02(+0.03) |
860 |
550 |
|
LNGT60 |
9.0(900) |
1380 (110) |
7.50 (60.0) |
7.3 |
Alnico9 |
-0.02(+0.03) |
860 |
550 |
|
LNGT72 |
|
