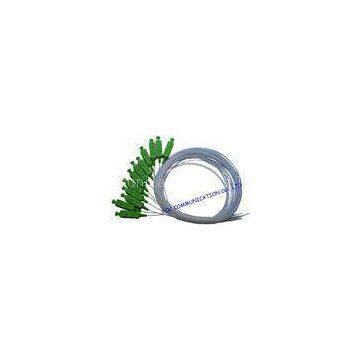

Simplex Fiber Optic Pigtail SC / APC SM G.657A2 , Bend Insensitive Telecom

Simplex Fiber Optic Pigtail SC / APC ?SM G.657A2 , Bend Insensitive Telecom??

Fiber Optic Pigtail is a piece of cable assembled with connectors only in one side. And the other side has no connectors. Then the other side is usually spliced with other fiber optic cable. It is preinstalled in the fiber optic terminal box, ODF, fiber optic joint closure to connect the equipment. ?There are single mode and multimode pigtails, the wavelength of single mode pigtail is 1310/1550nm and the color is yellow in common. If multimode fiber optic pigtail, ?the color is orange. We also provide non-jacketed fiber optic pigtail and jacketed pigtails.

Breakout optical fiber pigtail, distribution pigtail and ribbon fan out pigtails are also available.

Customer label and OEM design can be produced as per request.

Material

Cores: simplex, multi core pigtails (6pack, 8pack, 12pack, 24pack, 48pack)

Cable Jacket: PVC, LSZH, OFNR, OFNP

Cable outer diameter: 0.9mm, 2.0mm, 3.0mm

Fiber Type: SM (9/125um), OM1(62.5/125um), OM2(50/125um), OM3, OM4

Connector Type: FC, SC, ST, LC, MU, MTRJ, MPO, E2000, SMA, FDDI, D4, DIN

End face type: UPC, APC

Descriptions

The?SC fiber optic pigtails, these cables are with 9/125 single mode fiber, and connector types are PC, UPC or APC optional. The pigtails are fully compatible with industrial standards; they are good prices, fast delivery and good looking and packing.

SC?optical fiber cords are widely used in fiber optic systems; especially?SC single mode products are very popular.?SC standard fiber optic connectors are used for telecommunications, CATV, LAN, MAN, WAN, Test & Measurement, Industry, Medical and Sensors. SC fiber optic connectors comply with IEC 61754-13 & CECC 86 115-801 standards. They are well known for general, average applications. We can supply single mode and multimode version SC, FC, LC, ST, MU, E2000, MPO fiber optic patch cords and related fiber optic components.

Features

Low insertion loss

High return loss

Excellent repeatability

Compact and anti-pull design
Precision fiber optic ferrule???????????
High precision exact alignment
IEC Compliant
Telcordia compliant
UPC, PC or APC polished connectors

Applications

Local area networks, wide area networks

Optical Switch interface connections
Gigabit Ethernet
CATV and WAN
Testing Instrument, active device connection

Premise Installations
Telecommunication Networks

Fiber to the home

SPECIFICATIONS

Ordering Information

Fiber Optic Pigtail, Optical Fiber Pigtail, Fiber Pigtail, Fiber Pigtails
