Product Details

Brand Name	LinkAV		Place of Origin	China
Model Number	C322HD SDI-600

Product Description

Delivery Time:20 Days
Certification:CE

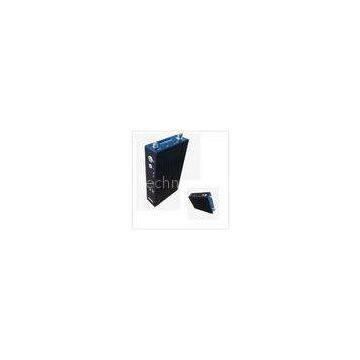

CE Certified 2Watts Short Latency ?HD SDI Transmitter for UAV

Introduction:

CE Certified 2Watts Short Latency ?HD SDI Transmitter for UAV is developed with focus on improving the picture quality and transmission frequency capacity. With up to 2 kilo meters transmission None Line of Sight?distance, the product has been well recognized in different applications in UAV settings, and the product has?:

Full outdoor-Rugged CNC machining?aliminium case 600MHZ working frequency Digital data transmission Small and lightweight CE Certification Reliable Military Components 1 Year Warranty or alternative Latency: ≤490ms

Product?Features:

High quality of video transmission, no mosaic, no dragging phenomenon, stable power with adjustable dynamic power; Support NLOS transmission, strong diffraction capability; Applied COFDM modulation technology, H.264 video compression.??

Technical?Parameters:

Item	Description
Modulation?Type	QPSK(4QAM),16QAM,64QAM
Working?Frequency	300-900MHZ(per 0.5M adjustable)
RF?Bandwidth	2/3/4/5/6/7/8MHz(optional)
Encryption?Method	128?-?bit?AES?(can set user’s password)
Parameter?Control?Method	Adjustable LED digital control panel
FEC(forward?error?correction)	1/2,2/3,3/4,7/8
Guard?Interval	1/4,1/8,1/16,1/32
Video?Input	SDI:?support?HD1080P,720P,576,480
Video?Compression	H.264
RFI?(RF?Interface)	N?female?head
Audio?Interface	AV?terminal,?intercom?earplugs
RF Output Power	31dBm
External(or?built-in)Battery	DC12V/1.55A
Working?Environment	-10~70℃
Overall?Dimensions	22012045(mm)

Background:

Zhongchuang Tech?is specialized in COFDM, TDD and 3G/4G wireless video transmission products for over 9 years, including video wireless transmitter, video wireless transmitter and receiver, quality video wireless transmitter, products are applied widely among Public Security Bureaus, Forest Fire Prevention Departments, Maritime Bureaus, Oil Field, Construction Sites, Tunnels,UAV, Automobiles and so on.
