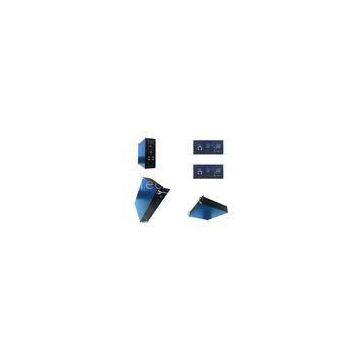

AV Vehicle Mounted Video HD Wireless Transmitter for Fire Prevention

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	LinkAV		Place of Origin	China
Model Number	C331-700 HD SDI

Product Description

Delivery Time:20 Days
Certification:CE Applicable

OEM Wireless Video HD SDI Transmitter for Fire Prevention

Introduction:

The vehicle?mounted wireless video transmitter is the ideal solution for establishing rugged wireless video links in all environments including high-speed motion and urban environments. Especially, the latest technologies of COFDM modulation and HDMI video compression ensure high quality of NLOS (non line-of-sight) transmission. This system is high-powered and can realize longer transmission range with stable, real-time and high definition picture quality. This product can be mounted in a car or helicopter to transmit real-time audio and video to the commanding center for

Forest Fire Prevention Earth Quakes? Public Security Bureaus Emergency Communications Flooding Fire Fighting Surveillance Systems Security Departments

?Product Features:

Video definition: 1080P, high resolution, high quality, stable with no mosaic Stable power supply and performance Dynamic power: adjustable Diffraction ability: strong Long distance transmission capacity, support non line of sight transmission

Technical parameters:

Items	Description
Modulation Type	QPSK(4QAM),16QAM,64QAM
Working Frequency	700MHz(per 0.5M adjustable)
Transmission Power Rate	43dBm
RF?Bandwidth	2/3/4/5/6/7/8MHz adjustable
FEC(forward error correction)	1/2,2/3,3/4,7/8
Guard Interval	1/4,1/8,1/16,1/32
Video Input	HD SDI:?embedded audio,support?HD1080P,720P,576,480
Video Compression	H.264
Audio Interface	Interphone(headset)
RF Interface	N F Head
Parameter Control Method	Adjustable digital LED control panel
Encryption Method	128 - bit AES (can set user’s password)
Transmission Distance	Above 25 KM in favorable conditions
Power Supply	AC220V
Work Current	1.7A
Operating Environment	-10~70℃
Dimensions	42033588.8(mm)

Background:

Zhongchuang Tech?is specialized in COFDM, TDD and 3G/4G wireless video transmission products for over 9 years, including?video wireless transmitter, video wireless transmitter and receiver, quality video wireless transmitter, products are applied widely among Public Security Bureaus, Forest Fire Prevention Departments, Maritime Bureaus, Oil Field, Construction Sites, Tunnels,UAV, Automobiles?and so on.
