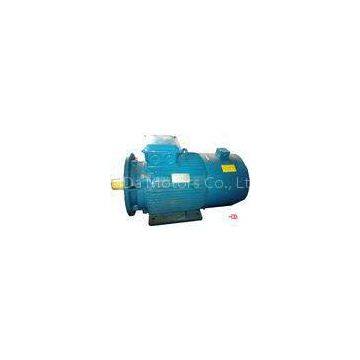

0.75KW 10HP / 20HP 6 Pole IMB35 / IM2001 SRI-2 Inverter Duty Motor 1000 Rpm

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HD		Place of Origin	China
Model Number	Y2VP-B35

Delivery Time:15 working days after order
Certification:CE/CCC/ISO9001

Ambient
Temperature range:	-15~40℃
Ambient humidity:	90%less than relative humidity
Altitude:	less than 1000m above sea level
Ambient condition:	no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization
Supply power:
Voltage variable	±5%
frequency variable	±2%? Combine voltage and frequency variable : ±5%
Standard Feature:
Standard	IEC
Efficiency Level	IE1
Phase	Three-phase
Frame Size	H80~355 cast iron frame
Protect Feature	Totally Enclosed
Output Range	0.75~315KW
Frequency	50HZ( 5~50Hz Constant Torque, 50~100Hz constant power)
Poles	2,4,6
Protection Class	IP55
Insulation	F/B
Mounting	IMB35 /IM2001
Cooling	IC416
Duty	S1
Lubricating grease	SRI-2
Thermometry	Optional
Certification	CCC, CE,ISO9001
Special motors can be designed according to customers\' requirements

Rated Power
