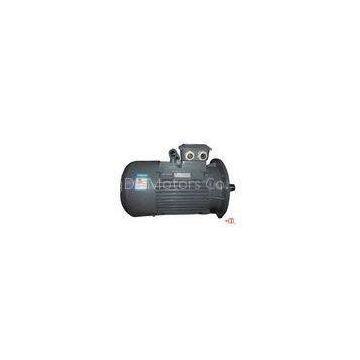

1.5KW / 4KW 2 Pole Class F/B Low Voltage Electric Motor 3000 Rpm

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HD		Place of Origin	China
Model Number	YE3-B5

Delivery Time:15 working days after order
Certification:CE/CCC/ISO9001

Ambient
Temperature range:	-15~40℃
Ambient humidity:	90%less than relative humidity
Altitude:	less than 1000m above sea level
Ambient condition:	no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization
Supply power:
Voltage variable	±5%
frequency variable	±2%? Combine voltage and frequency variable : ±5%
Standard Feature:
Standard	IEC/GB
Efficiency Level	IE3
Phase	Three-phase
Frame Size	H80~280 Cast iron frame
Protect Feature	Totally Enclosed
Output Range	0.75~375KW
Voltage	380V
Frequency	50HZ
Pole	2,4,6
Protection Class	IP55
Insulation	F/B
Mounting	IMB5/IM3001
Cooling	IC411
Duty	S1
Connection	” Y\" type for 3kW and downwards, \"D\" type for 4kW and upwards
Thermometry	Optional
Certification	CCC, CE,ISO9001
Special motors can be designed according to customers\' requirements

Greasing Period

Greasing Type	Frame Size	Poles	Grease Life/Relubrication Interval(Up to CT40℃)
Prelubricated	H80~160	2	20000 h
4,6	40000 h
H180~280	2	20000 h
4,6	40000 h
Regreasing	H315~355	2	30000 h
4,6	60000 h

Rated Power
