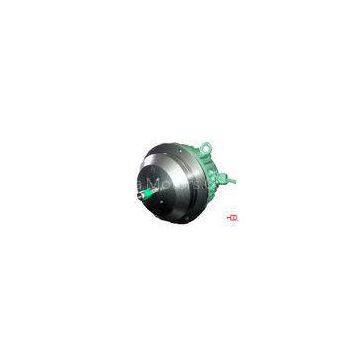

Totally Enclosed IC411 S1 Class F/B Textile Motors With IEC / DIN Standard
- T/T L/C D/P D/A
- 7 days
You May Like
-
Totally Enclosed 1.1KW 50HZ IMB3 High Temperature Electric Motors With H80 Cast Iron Frame
-
1.5 / 2 Horsepower Asynchronous High Temperature Electric Motors 1.1KW / 1.5KW
-
IMB3 3 Phase IC411 S1 4 Pole Low Voltage Electric Motor IP54 / IP55
-
3 Phase 2.2K 2 Pole S1 High Temperature Electric Motors With IEC / DIN Standard
-
High Temperature Resistant Three Phase Asynchronous Motors For Circulation Fan
-
Waterproof IMB3 7.5KW High Temperature Electric Motors With CE / ISO9001
Product Details
| Brand Name | HD | Place of Origin | China | |
| Model Number | YCF132 |
Product Description
Certification:CE/CCC/ISO9001
Description:
YCF132 series textile motors are specially designed for driving fan of textile machines. This series motors have low temperature rise , small size ,low noise and strong dustproof ability. YCF132 series motors are suitable for speed drawing frame, fan of spinning-frames under the working conditions of plentiful dust and short fibers, high temperature and humidity or other similar conditions.
Applications:
YCF132 series motors are suitable for speed drawing frame, fan of spinning-frames under the working conditions of plentiful dust and short fibers, high temperature and humidity or other similar conditions.
|
Ambient |
|
|
Temperature range: |
-15~40℃ |
|
Altitude: |
less than 1000m above sea level |
|
Ambient condition: |
no causticity gas, no heavy mental pollution, no flame, no salt crystallization |
|
Supply power: |
|
|
Voltage variable |
±5% |
|
frequency variable |
±2%? Combine voltage and frequency variable : ±5% |
|
Standard Feature: |
|
|
Standard |
IEC /DIN |
|
Efficiency Level |
IE1 |
|
Phase |
Three-phase |
|
Frame Size |
H132 cast iron frame |
|
Protect Feature |
Totally Enclosed |
|
Output Range |
2.2~7.5KW |
|
Voltage |
380V |
|
Frequency |
50HZ |
|
Pole |
2 |
|
Protection Class |
IP54 |
|
Insulation |
F/B |
|
Cooling |
IC411 |
|
Duty |
S1 |
|
Thermometry |
Optional |
|
Certification |
CCC, CE,ISO9001 |
|
Special motors can be designed according to customers\' requirements |
Technical Specification (2 pole ,380V/50HZ)
|
Motor??? Type |
Rated??? Power |
Current |
Rated?????? Speed |
Power? Factor |
Efficiency |
Locked Current |
Locked Torque |
Maximum Torque |
|
Rated Current |
Rated Torque |
Rated Torque |
||||||
|
KW |
A |
r/min |
cosΦ |
η% |
Ist/IN |
Tst/TN |
TM/TN |
|
|
YCF 132S01-2 |
2.2 |
4.7 |
2890 |
0.85 |
85 |
7 |
2 |
2.3 |
|
YCF 132S02-2 |
3 |
6.4 |
2890 |
0.85 |
85 |
7 |
2 |
2.3 |
|
YCF 132S01-3 |
4 |
8.1 |
2890 |
0.85 |
85 |
7 |
2 |
2.3 |
|
YCF 132S1-2 |
5.5 |
10.5 |
2910 |
0.86 |
86 |
7 |
2 |
2.3 |
