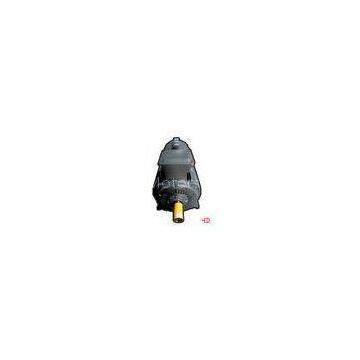

Totally Enclosed 45KW / 160KW Inverter Duty Motor For Water Pumps IEC / GB

Ambient

Temperature range:

-15~40℃

Ambient humidity:

90%less than relative humidity

Altitude:

less than 1000m above sea level

Ambient condition:

no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization

Supply power:

Voltage variable

±5%

frequency variable

±2%? Combine voltage and frequency variable : ±5%

Standard Feature:

Standard

IEC/GB

Efficiency Level

IE1

Phase

Three-phase

Frame Size

H315~355 cast iron frame

Protect Feature

Totally Enclosed

Output Range

45~160KW

Frequency

50HZ( 5~50Hz Constant Torque, 50~100Hz constant power)

Pole

10

Protection Class

IP55

Insulation

F/B

Mounting

IMB3 or on your request

Cooling

IC416

Duty

S1

Lubricating grease

SRI-2

Thermometry

Optional

Certification

CCC, CE,ISO9001

Special motors can be designed according to customers\' requirements

Motor Type

Rated??? Power

Current

Rated?????? Speed

Rated?????? Torque

Maximum Torque

Weight

Rated Torque

kW

HP

?InA

r/min

N.m

TM/TN

Kg

Y2VP315S-10

45

60

106.1

590

716.2

2

979

Y2VP315M-10

55

75

129.2

590

875.3

2

1062

Y2VP315L1-10

75

100

172.5

590

1193.6

2

1144

Y2VP315L2-10

90

125

191

590

1432

2

1243

Y2VP355M1-10

110

150

230

590

1736

2

1782

Y2VP355M2-10

132

180

276

590

2083

2

1903

Y2VP355L-10

160

215

333.3

590

2525

2

2167
