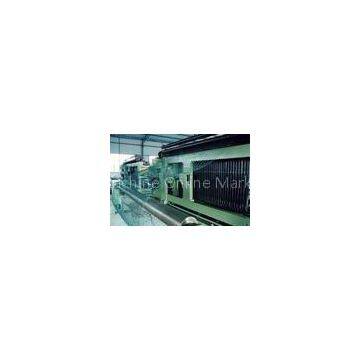

Width 2300mm Automatic Hexagonal Gabion Mesh Machine Double Twisted

Width 2300mm Automatic Hexagonal Gabion Mesh Machine Double Twisted


Quick Detail:
1.the lnwl-2 series gabion mesh machines have been designed to make gabion mesh of various widths and
mesh sizes
2.The gabion mesh machine, is the professional equipment that produces hexagonal wire netting


Descrition:

the lnwl-2 series gabion mesh machines have been designed to make gabion mesh of various widths
and mesh sizes,
we can produce the machine as your size. please note: all machines which showed in globalmarket
and made-in -china and alibaba are from jinlida. we supply advanced machine to oversea clients directly
only. if you want to buy advanced machine and want to get best after sales service, please contact
me directly.


Applications:

The gabion mesh machine, is the professional equipment that produces hexagonal wire netting, its product
extensively used
for petroleum, building, farming and chemical engineering industry, keep warm piping and other piping,
be also used for rounding column, residence and park greening safeguard etc..
Gabion mesh is still more available to manufacture the gabion mesh box and extensively used for safeguard
and backing sea dike, hillside, road , bridge and reservoir and others, it is the best material of the
flood control at the same time.


Specifications:

1. Mesh sizes: 120X150mm

2. twist: double twist

3. Max. netting width: 2300mm

4. Max. galvanized wire diameter: 3.5mm

5. Max PVC wire diameter: 4.5mm

6. Spindle Speed:20r/min

7. Power: 11Kw

8. Size: 7200 x 1400 x 2400mm

9. Weight: 15MT

10. Theoretic output: 255m/hr

11. Automatic stop system (option): when the coiling finished or wire broken, the machine

will stop automatically

12. Infrared ray safety protection system (option)

13. Automatic oil system


Competitive Advantage:

1. JINLIDA company invented the first special equipment of double twisted wire netting making machine in
China (patent number: ZL99229381.2 and ZL00267066.5). And until now, we have persevered in this
area of gabion machine making for 15 years.

2. All the parts of gabion machine are processed by our own factory; no parts were send to outside to
process, so the quality can be ensured.

3. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our
technician to helpinstall the machines in your country, and also could supply all the spare parts with
cost price if customer need.
