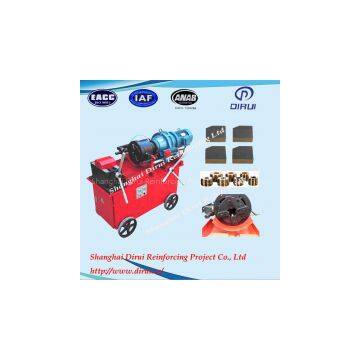

Automatic Bar threading machine for sale made in Shanghai

Bar threading machine is designed for processing parallel threads for rebar mechanicalconnection, can process HRB335, HRB400, HRB500 reinforced bar with diameter12--50mm. The max thread length is 120mm.

Technical Parameters
Model: DBG-40B
Rebar Diameter: 16-40MM
Motor Power: 4KW 8A
Voltage: 3-380V 50HZ
Thread Angle: 75°,Customized
Thread Pitch: 2.0-3.5MM
Spindle Speed: 48-82 r/min
Max Thread Length: 80MM
Dimension: 1*0.7*0.9M
Net Weight: 400kg
Certification: ISO9001-2008
Package: Wooden Case, Iron Frame

Features

1 Both right-handed threads & left-handedthreads could be processed.

2 Easy and convenient installation, operationand maintenance.

3 No pollution, no material waste and norestriction of weather.

4 Reasonable structure, reliable performance.

5 High production efficiency, no need forskilled technicians.

6 Full-tension splice, bar break under tensiletests.

7 Rebar splices can be protected by plasticcap.

8 Processed thread is more precise with smallconical degree and smooth surface.

9 Shorten construction period, splices could beproduced in advance.

10 Designed and manufactured in compliance withISO9001-2008.

11 600-900 heads per day
