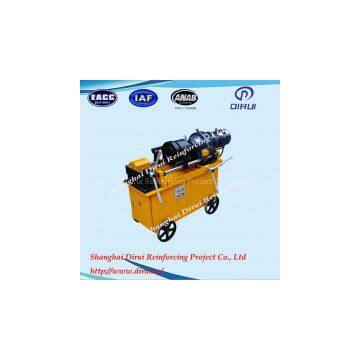

High quality Steel rod threading machine for sale made in Shanghai

Steel rod threading machine is designed for processing parallel threads for rebar mechanicalconnection, can process HRB335, HRB400, HRB500 reinforced bar with diameter12--50mm. The max thread length is 120mm.

Technical Parameters
Model: DBG-40B
Rebar Diameter: 16-40MM
Motor Power: 4KW 8A
Voltage: 3-380V 50HZ
Thread Angle: 75°,Customized
Thread Pitch: 2.0-3.5MM
Spindle Speed: 48-82 r/min
Max Thread Length: 80MM
Dimension: 1*0.7*0.9M
Net Weight: 400kg
Certification: ISO9001-2008
Package: Wooden Case, Iron Frame

Features

1 Both right-handed threads & left-handedthreads could be processed.

2 Easy and convenient installation, operationand maintenance.

3 No pollution, no material waste and norestriction of weather.

4 Reasonable structure, reliable performance.

5 High production efficiency, no need forskilled technicians.

6 Full-tension splice, bar break under tensiletests.

7 Rebar splices can be protected by plasticcap.

8 Processed thread is more precise with smallconical degree and smooth surface.

9 Shorten construction period, splices could beproduced in advance.

10 Designed and manufactured in compliance withISO9001-2008.

11 600-900 heads per day
