TPT703 Pressure Transmitter/Transducer/Sensor 0-1bar, 0-700bar
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | Erdason | Place of Origin | China | |
| Model Number | TPT703 |
Product Description

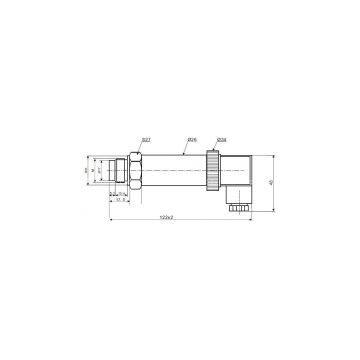

Model#: TPT703 (flat diaphragm type)
Range: 0-1bar, 0-700bar
Accuracy: 0.25%FS, 0.5%FS
Nonlinearity: 0.5%FS (full scale)
Reliability: 0.05%FS (full scale)
Output: 4-20mA (2wires); 0-5V; 0.5-4.5V (3wires), 0-10V; 1-10V
Input Voltage: 24(12-36) VDC
Operating Temperature: -40℃ - 60℃
Temperature Compensation: 0℃ - 70℃
Overload pressure: 125%FS
Material: Stainless steel
Electric Connection: Hirschman (DIN), M12 four pin connector (customized)
Process Connection: G1/4,G1/2,1/2NPT,1/4NPT,M12*1.5 (customized)
Applications:
Hydraulic, die-casting, central air conditioning system, constant pressure water supply, Environmental protection, air compressor and other automatic control system
Food, asphalt, mud, viscous oily liquid pressure measurement
