Home > Products > Melt Pressure Transmitter > PT129 Melt Pressure Transmitter/Transducer/Sensor 0-3.5Mpa…0-150Mpa

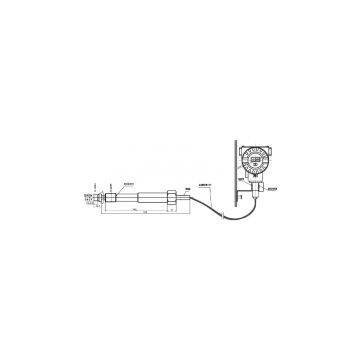

PT129 Melt Pressure Transmitter/Transducer/Sensor 0-3.5Mpa…0-150Mpa
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
PT131 Melt Pressure Transmitter/Transducer/Sensor 0-3.5Mpa…0-150Mpa
-
PT124-284 Melt Pressure Gauge 0…6Mpa, 0…150Mpa
-
PT124-284S Melt Pressure Gauge 0…1Mpa, 0…200Mpa
-
PT124-285 Melt Pressure Gauge 0…1Mpa, 0…200Mpa
-
PT124-286 Melt Pressure Transmitter/Transducer/Sensor 0…6Mpa, 0…60Mpa
-
EDS-LUGB Flow Meter 10 – 1000mm
Product Details
| Brand Name | Erdason | Place of Origin | China | |
| Model Number | PT129 |
Product Description
Model#: PT129 (LCD display)
Range: 0-3.5Mpa…0-150Mpa (0-500psi…0-20000psi)
Overload pressure: 1.5xFS
Accuracy: ±0.25%FS, ±0.5%FS
Output: 4-20mA
Input Voltage: 24VDC (12-36V)
Repeatability: ±0.2%FS
Output resistance: 350 Ohms ±10%
Inner auto-calibration: 80%FS ±1%
Max. Diaphragm temperature: 400℃
Diaphragm material: 15-5PH coating with stainless steel
Electric Connection: cable gland joint
Process Connection: ?”-20UNF, M14x1.5, M18x1.5, M22x1.5, G3/4 (Customized)
Applications:
Chemical fiber equipment
Plastic and rubber manufacturing equipment
Pressure measurement and control of high temperature of fluid
