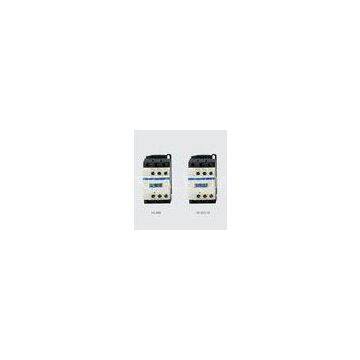

IEC 60947-4 AC Magetic Contactor with 3 pole, Voltage Up to 1000V, Current 9A to 150A

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	VECAS		Place of Origin	China
Model Number	HC-N

Product Description

Delivery Time:WITHIN 30DAYS AFTER L/C OR 30% DEPOSIT RECEIVED
Certification:CE

IEC 60947-4 AC Magetic Contactor with 3 pole, Voltage Up to 1000V, Current 9A to 150A

Application

HC-N series AC contactors are suitable for frequency 50/60Hz, rated insulation voltage up to 1000V, rated operation current 9~150A under AC-3 duty. It is mainly used for making and breaking electric circuits at a long distance & for frequentstrarting, stopping & controlling AC Motors. It is used in combination with thrmal relay to compose a magnetic motor starter. The products comply with IEC6047-4.

Standard Control Circuit Voltages

Volts

110

220

230

240

380

400

415

440

500

660

50Hz

60Hz

50/60Hz

Speci?carions

Rated operational currenr	Ie max AC-3 (Ue≤440V)	9A	12A	18A	25A	32A
Ie AC-1 (0≤60℃)	25A		32A	40A	32A
Number of poles		3	3? ?? ?4	3	3? ? 4	3
Rated operational power in AC-3	220/240V	2.2KW	3KW	4KW	5.5KW	7.5KW
380/400V	4KW	5.5KW	7.5KW	11KW	15KW
415/440V	4KW	5.5KW	9KW	11KW	15KW
500V	5.5KW	7.5KW	10KW	15KW	18.5KW
660/690V	5.5KW	7.5KW	10KW	15KW	18.5KW
1000V	-	-	-	-	-
Auxiliary contaces
